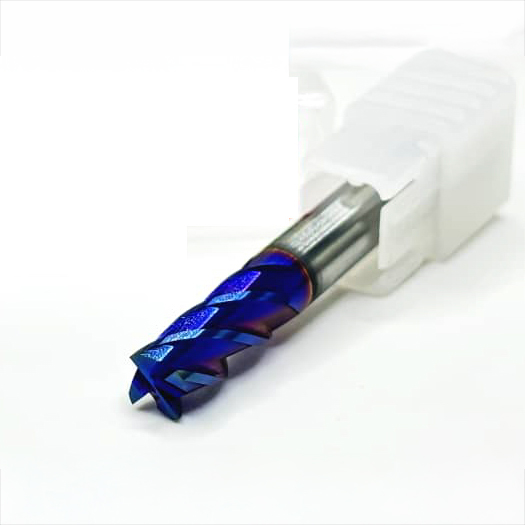

4 Flute End Mills With Corner Radius for HRC60
Price range: R175.00 through R900.00 Excl VAT
Description
| Mill Dia. Tolerance | Shank Dia. Tolerance | ||||
| D<12 0–0.02 | h6 | ||||
| D>12 0–0.03 |
| Item No | Mill Diameter D (mm) |
Corner Radius R/(mm) |
Cutting of length H (mm) |
Shank Diameter d (mm) |
Overall length L (mm) |
|||||||||||
| BD104‑4CS‑D010 | 1 | R0.2 | 3 | 4 | 50 | |||||||||||
| BD104‑4CS‑D015 | 1.5 | R0.2 | 4.5 | 4 | 50 | |||||||||||
| BD104‑4CS‑D020 | 2 | R0.2 | 6 | 4 | 50 | |||||||||||
| BD104‑4CS‑D025 | 2.5 | R0.2 | 7 | 4 | 50 | |||||||||||
| BD104‑4CS‑D030 | 3 | R0.2 | 8 | 4 | 50 | |||||||||||
| BD104‑4CS‑D040 | 4 | R0.2 | 10 | 4 | 50 | |||||||||||
| BD104‑4CE‑D040 | 4 | R0.2 | 16 | 4 | 75 | |||||||||||
| BD104‑4CL‑D040 | 4 | R0.5 | 20 | 4 | 100 | |||||||||||
| BD104-‑4CS‑D050 | 5 | R0.5 | 13 | 5 | 50 | |||||||||||
| BD104‑4CS‑D060 | 6 | R0.5 | 15 | 6 | 50 | |||||||||||
| BD104‑4CE‑D060 | 6 | R0.5 | 25 | 6 | 75 | |||||||||||
| BD104‑4CL‑D060 | 6 | R0.2 | 30 | 6 | 100 | |||||||||||
| BD104‑4CXL‑D060 | 6 | R0.5 | 40 | 6 | 150 | |||||||||||
| BD104‑4CS‑D080 | 8 | R0.5 | 20 | 8 | 60 | |||||||||||
| BD104‑4CE‑D080 | 8 | R0.5 | 25 | 8 | 75 | |||||||||||
| BD104-‑4CL‑D080 | 8 | R0.5 | 35 | 8 | 100 | |||||||||||
| BD104‑4CXL‑D080 | 8 | R0.5 | 40 | 8 | 150 | |||||||||||
| BD104‑4CS‑D100 | 10 | R0.5 | 25 | 10 | 75 | |||||||||||
| BD104‑4CE‑D100 | 10 | R0.5 | 40 | 10 | 100 | |||||||||||
| BD104‑4CL‑D100 | 10 | R0.5 | 50 | 10 | 150 | |||||||||||
| BD104‑4CS‑D120 | 12 | R0.5 | 30 | 12 | 75 | |||||||||||
| BD104‑4CE‑D120 | 12 | R0.5 | 45 | 12 | 100 | |||||||||||
| BD104‑4CL‑D120 | 12 | R0.5 | 55 | 12 | 150 | |||||||||||
| BD104‑4CS‑D140 | 14 | R0.5 | 40 | 14 | 100 | |||||||||||
| BD104‑4CE‑D140 | 14 | R0.5 | 60 | 14 | 150 | |||||||||||
| BD104‑4CS‑D160 | 16 | R0.5 | 45 | 16 | 100 | |||||||||||
| BD104‑4CE‑D160 | 16 | R0.5 | 70 | 16 | 150 | |||||||||||
| BD104‑4CS‑D180 | 18 | R0.5 | 45 | 18 | 100 | |||||||||||
| BD104‑4CE‑D180 | 18 | R0.5 | 70 | 18 | 150 | |||||||||||
| BD104‑4CS‑D200 | 20 | R0.5 | 45 | 20 | 100 | |||||||||||
| BD104‑4CE‑D200 | 20 | R0.5 | 70 | 20 | 150 | |||||||||||
| Workpiece Material | ||||||||||||||||
| Carbon Steel | Alloy Steel | Pre-hardened Steel/Hardened Steel | Stainless Steel | Cast Iron | Cooper Alloy | Aluminum Alloy | Titanium Alloy | Heat Resistant Alloy | ||||||||
| 40HRC | 5OHRC | 55HRC | 68HRc | |||||||||||||
| @ | @ | @ | @ | @ | @ | @ | @ | O | ||||||||
| @Very Suitable O Suitable | ||||||||||||||||
Items in blue currently available
HRC 65 coating specification
Main Ingredients: TiAlN+TiSiN
Color: Blue Nano
Structure: Multi-layer coating
Normal Coating Thickness: 2-4um
Microhardness (HV): 4200
Heat Resistance Temperature (℃): 1200
Friction Coefficient: 0.35
This coating has good high temperature resistance. It is a high silicon coating with low friction coefficient.
| Workpiece Material | Pre-Harden Steel | Hardened Steel | Hardened Steel | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardness: 35-48HRC | Cutting Depth: Side milling: ap ≤ 1.5D ae ≤ 0.1D | Hardness: 48-52HRC | Cutting Depth: Side milling: ap ≤ 1.5D ae ≤ 0.05D | Hardness: 48-60HRC | Cutting Depth: Side milling: ap ≤ 1.5D ae ≤ 0.03D | |||||||
| Diameter | R.P.M | Feed (mm/min) | R.P.M | Feed (mm/min) | R.P.M | Feed (mm/min) | ||||||
| 3mm | 10600 | 565 | 8500 | 370 | 7430 | 325 | ||||||
| 4mm | 8000 | 575 | 6500 | 380 | 5570 | 335 | ||||||
| 6mm | 5300 | 620 | 4200 | 405 | 3710 | 350 | ||||||
| 8mm | 4000 | 615 | 3200 | 415 | 2785 | 365 | ||||||
| 10mm | 3200 | 605 | 2500 | 390 | 2230 | 340 | ||||||
| 12mm | 2650 | 605 | 2100 | 390 | 1855 | 340 | ||||||
| 16mm | 2000 | 565 | 1800 | 370 | 1590 | 325 | ||||||
| 20mm | 1600 | 555 | 1250 | 365 | 1115 | 315 | ||||||
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (mm) | 3, 4, 5, 6, 8, 10, 12, 16 |
| Length (mm) | 50, 60, 75, 100, 120, 150 |
