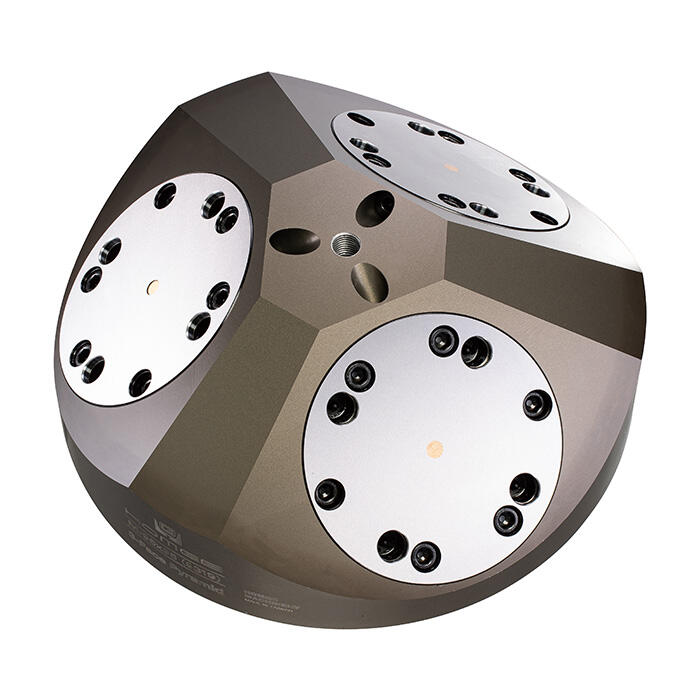

4th/5th Axis 3 Faced Pyramid
Compatible with LANG and other popular brands.
Description
- The highly durable system body, designed for easy accessibility and featuring recessed zero-point plates, proves to be an excellent choice for enhancing the operational efficiency of 5-axis machining centers.
- The integrated zero-point interface in the three-sided pyramid design not only streamlines setup procedures but also offers significant advantages to the operator in terms of reduced setup times.
Specifications
mm

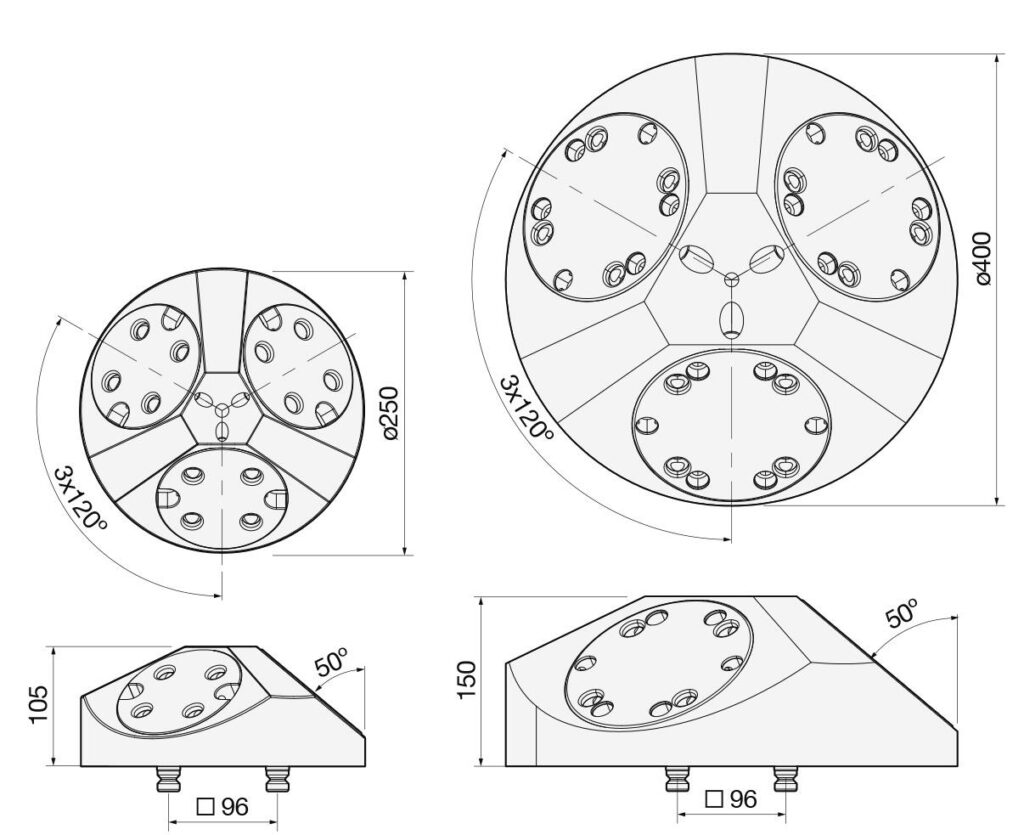

| Model | LxWxH | Pull Stud No. | Compatible with | Weight (kg) |
|---|---|---|---|---|
| M-52×52(9314) | Ø250×105 | M-52x52PS/ M-96x96PS | Round Plate M-52×52(8004) x 3 pcs Round Plate M-52×52(8004G) x 3 pcs |
12.7 |
| M-96×96(9319) | Ø400×150 | M-96x96PS | Round Plate M-96×96(8053) x 3 pcs Round Plate M-96×96(8053G) x 3 pcs |
44 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 20 × 20 × 12 cm |
| Size | 52×52, 96×96 |
