BBT40 ER Collet Chucks

Description

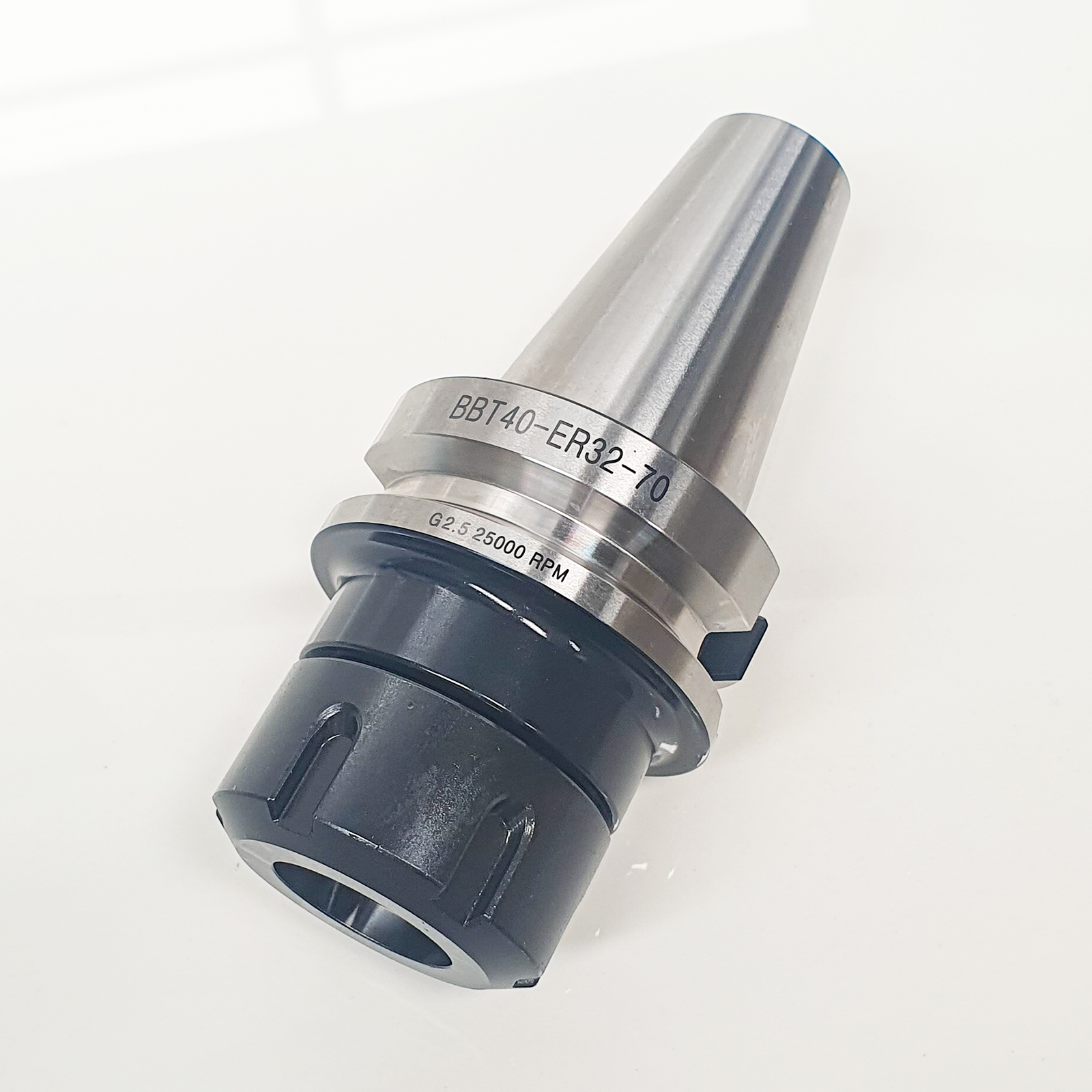

BBT40 ER Collet Chuck, 100mm Gauge Length – Dual Contact Precision for CNC Machining

The BBT40 ER Collet Chuck is engineered to provide unparalleled accuracy and stability in high-speed CNC machining. Known for its dual-contact (Big Plus BT) design, also referred to as Dual Contact, this collet chuck makes contact at both the spindle taper and flange face. This enhanced contact area boosts rigidity, making it superior to standard BT holders, especially in high-precision or heavy-load machining environments.

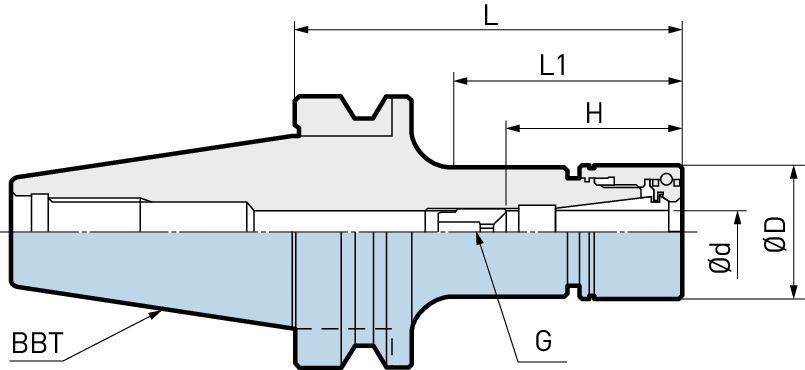

BBT40 ER Collet Chuck Drawings

Explore the detailed technical drawings of the following models listed in the table further down:

BBT40 ER32 Collet Chuck Tool Holder Specifications

Key Features

• Dual Contact Design: Ensures both taper and flange contact, enhancing stability and minimising deflection under heavy loads.
• High Precision: Achieves less than 0.002mm run-out, making it ideal for precise machining applications.
• Balanced to G2.5: Capable of high-speed operations up to 25,000 RPM without compromising on tool life or accuracy.
• Improved Rigidity: Reduces chatter and vibration during high-speed machining, ensuring consistent surface finishes.
• Compatible with Standard BT Machines: Can be used in conventional BT spindles, though optimal performance is achieved in BBT-compatible machines.

Advantages of BBT40 Over Standard BT Holders

1. Improved Machining Stability: The dual contact setup provides a firmer fit, reducing chatter, vibration, and deflection, leading to improved surface finishes and dimensional accuracy.
2. Precision Under High Loads: BBT40 Collet Chucks excel in maintaining high precision even under heavy cutting loads, ideal for demanding CNC operations.
3. Higher Tool Life: The reduced vibration ensures longer tool life by minimising wear and tear.
4. Versatile Applications: Suited for high-precision tasks in aerospace, medical, and automotive sectors, as well as general CNC milling.

Applications

• High-Precision CNC Machining: Ideal for tasks requiring exceptional accuracy and stability.
• Automotive & Aerospace Components: Delivers superior performance for machining components with tight tolerances.
• General Milling & Drilling: Provides optimal tool clamping for a variety of milling and drilling tasks.

Replacement parts

You can find the replacment nuts under our ER type nuts

Out of Stock or Need a Different Size? Enquire Today!

If the item shows out of stock or if you need a different size, please reach out to CNC Support for additional options or to place a special order. We prioritise your machining needs and can arrange for stock replenishment or expedited orders.
