BMT Axial Tool Holder (External Coolant)
These items are usually all imported on demand from Taiwan
Description
Driven Coupling is according to DIN 1809
ER Collet is according to DIN 6499
Max RPM: 6000rpm

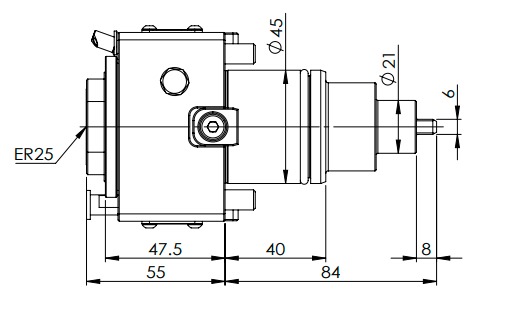

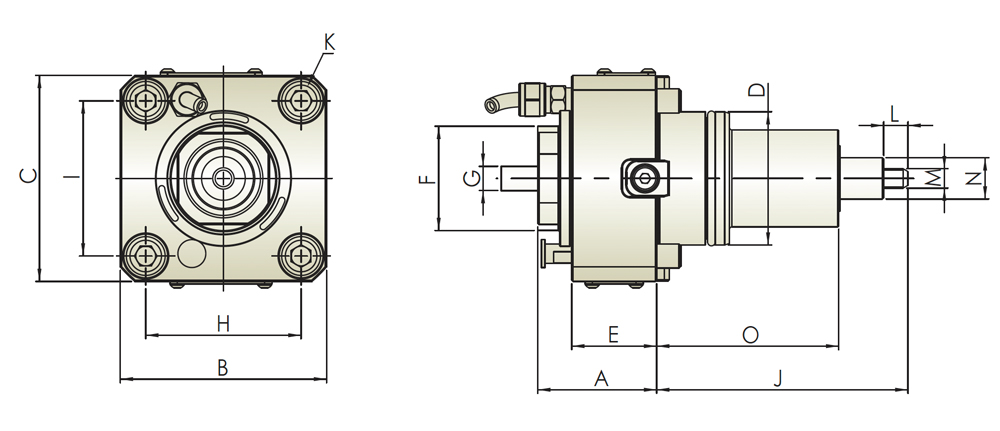

| Model | D | D1 | D2 | D3 | D4 | D5 | Collet | L | L1 | L2 | Thread | M | M1 | M2 | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THM-A11-45A | 55 | 75 | 75 | 45 | 42.5 | 43 | ER25(2~16) | 58 | 58 | 84 | M8 | 8 | 6 | 13 | 60 | 2.5 |
| THM-A11-55A | 49 | 85 | 85 | 55 | 35 | 43 | ER25(2~16) | 64 | 64 | 103.5 | M10 | 10 | 8 | 17 | 75 | 3 |
| THM-A12-65A | 60 | 94 | 94 | 65 | 48 | 54 | ER32(3~20) | 70 | 73 | 111.5 | M12 | 14 | 10 | 20 | 81 | 4.4 |
| THM-A13-75A | 74 | 112 | 112 | 75 | 51 | 69 | ER40(4~26) | 90 | 90 | 110 | M12 | 15 | 14 | 23 | 76 | 7.4 |
| THM-A11-55C | 49 | 85 | 85 | 55 | 35 | 43 | ER25(2~16) | 64 | 64 | 103.5 | M10 | 10 | 8 | 28 | 75 | 3 |
| THM-A12-65C | 60 | 94 | 94 | 65 | 48 | 54 | ER32(3~20) | 70 | 73 | 111.5 | M12 | 14 | 10 | 28 | 81 | 4.4 |
| THM-A13-75C | 74 | 112 | 112 | 75 | 51 | 69 | ER40(4~26) | 90 | 90 | 110 | M12 | 15 | 14 | 38 | 76 | 7.4 |
Additional information
| Weight | 3 kg |
|---|
