Description
The Super Torx broach is a Torx broaching tool that cuts an internal Torx drive profile into a pre-drilled hole. Also known as a hexalobular broach, it lets you produce Torx sockets in screws, fasteners and machined parts on your own CNC machine.
Key features of the Torx broach
- Cuts a clean internal Torx (hexalobular) drive profile
- Produces Torx sockets in screws, fasteners and custom parts

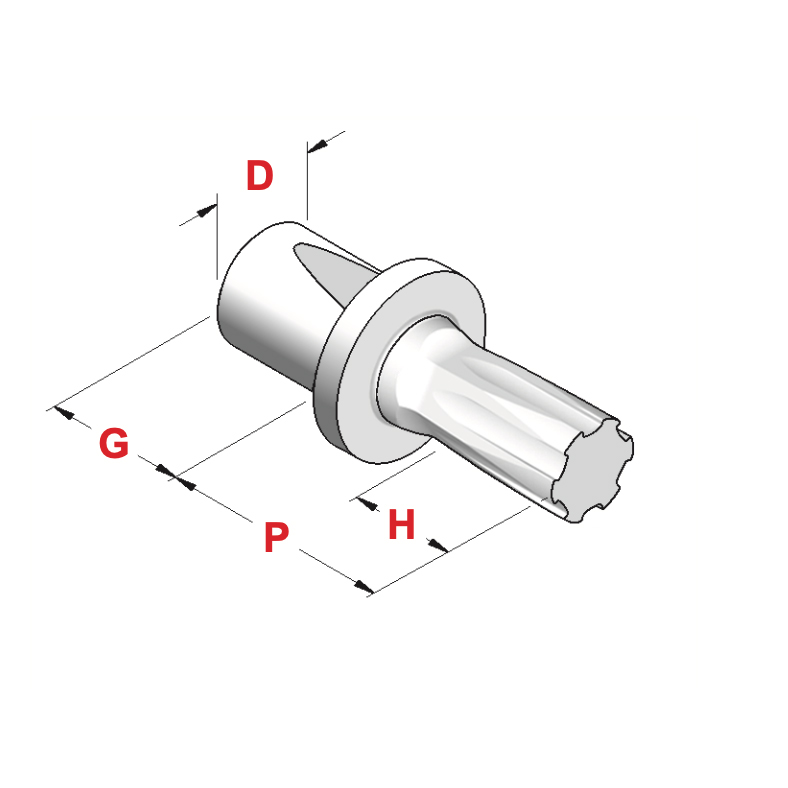

- Dimensions D, G, P and H shown on the product drawing for easy size selection
Hexalobular broach sizes and specifications
Each hexalobular broach is made for one Torx size. Dimensions D, G, P and H refer to the product drawing. All dimensions are in mm.
| Size | Art. | D (mm) | G (mm) | P (mm) | H (mm) |
|---|---|---|---|---|---|
| TBC | TBC | TBC | TBC | TBC | TBC |
Compatibility
Suits CNC lathes and machining centres used to broach internal Torx profiles. Check the Torx size and pre-drill diameter for your part before ordering.
Typical applications of the Torx broaching tool
Used to cut internal Torx (hexalobular) drive sockets in screws, bolts, fasteners and custom machined parts.
Why choose this Torx broaching tool
Broaching the Torx profile in-house lets you make custom Torx fasteners and parts without buying them in, and keeps the whole job on one machine. A Torx broach is a low cost way to add a secure drive profile to small batches of parts. Keep a Torx broaching tool for each Torx size you use, so you are ready for repeat orders.
Torx broach FAQs
What size pre-drill hole does a Torx broach need?
It depends on the Torx size. Check the pre-drill diameter for your Torx size before you drill. The size table will list each size once the values are confirmed.
Can one Torx broaching tool cut different Torx sizes?
No. Each tool cuts one Torx size, so order one for each size you need to produce.
What is a hexalobular broach?
It is another name for a Torx broach. Hexalobular is the technical name for the six-lobed Torx drive profile, so the socket it cuts fits standard Torx drivers.
