BT30 BT40 BT50 MAS Type Gripper
Description

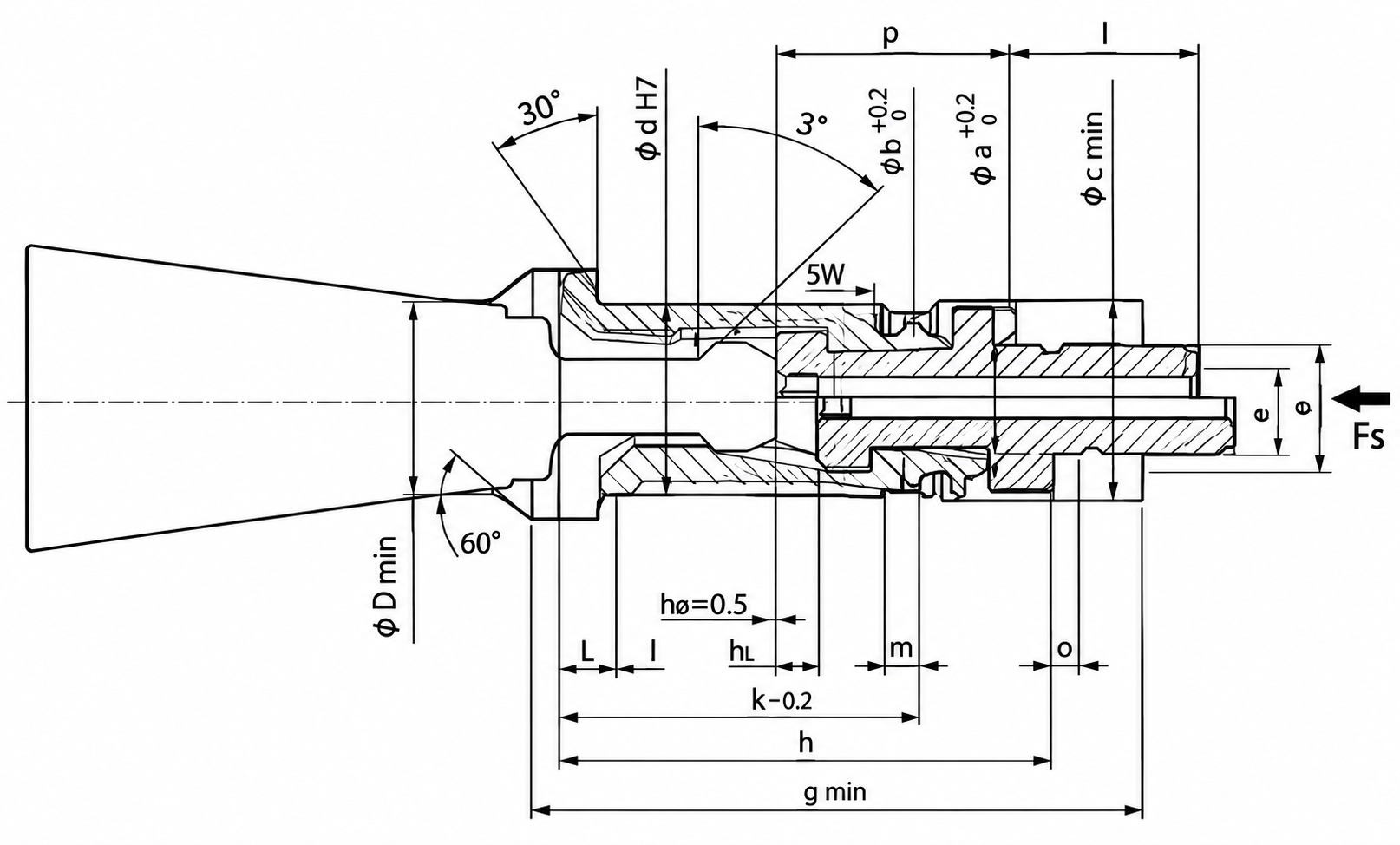

The Pullstud Gripper pulls the pullstud up into the machine spindle.
| Code No. | Type | A’ (°) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | g (mm) | h (mm) | t |
|---|---|---|---|---|---|---|---|---|---|---|
| BA900BGB30001A | BT30-45° | 45° | 19 | 17.8 | 20.2 | 10 | 24 | 50 | 47 | M10×P1.5 |
| BA900BGB30002A | BT30-30° | 30° | 19 | 17.8 | 20.2 | 10 | 24 | 50 | 47 | M10×P1.5 |
| BA900BGB30003A | BT30-90° | 90° | 19 | 17.8 | 20.2 | 10 | 24 | 50 | 47 | M10×P1.5 |
| BA900BGB40001A | BT40-45° | 45° | 28 | 26.4 | 28.5 | 16 | 35 | 82 | 70 | M16×P1.5 |
| BA900BGB40002A | BT40-30° | 30° | 28 | 26.4 | 28.5 | 16 | 35 | 82 | 70 | M16×P1.5 |
| BA900BGB40003A | BT40-90° | 90° | 28 | 26.4 | 28.5 | 16 | 35 | 82 | 70 | M16×P1.5 |
| BA900BGB50001A | BT50-45° | 45° | 43 | 40.4 | 43.5 | 22 | 54 | 98 | 90 | M22×P1.5 |
| BA900BGB50002A | BT50-30° | 30° | 43 | 40.4 | 43.5 | 22 | 54 | 98 | 90 | M22×P1.5 |
| BA900BGB50003A | BT50-90° | 90° | 43 | 40.4 | 43.5 | 22 | 54 | 98 | 90 | M22×P1.5 |
| BA900BGB60001A | BT60-45° | 45° | 62 | 58.6 | 62.5 | 30 | 77 | 130 | 117 | M30×P1.5 |
| Code No. | Type | l (mm) | k (mm) | L (mm) | m (mm) | n (mm) | o (mm) | p (mm) | hL (mm) | Fs max (N) | MA (Nm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BA900BGB30001A | BT30-45° | 20 | 37 | 7.5 | 3.5 | 3 | 3 | 21 | 3 | 10 | 20 |
| BA900BGB30002A | BT30-30° | 20 | 37 | 7.5 | 3.5 | 3 | 3 | 21 | 3 | 10 | 20 |
| BA900BGB30003A | BT30-90° | 20 | 37 | 7.5 | 3.5 | 3 | 3 | 21 | 3 | 10 | 20 |
| BA900BGB40001A | BT40-45° | 26 | 52 | 10 | 4.5 | 6 | 4 | 33 | 5 | 18 | 65 |
| BA900BGB40002A | BT40-30° | 26 | 52 | 10 | 4.5 | 6 | 4 | 33 | 5 | 18 | 65 |
| BA900BGB40003A | BT40-90° | 26 | 52 | 10 | 4.5 | 6 | 4 | 33 | 5 | 18 | 65 |
| BA900BGB50001A | BT50-45° | 34.5 | 69 | 16 | 5 | 9 | 5 | 37 | 8 | 35 | 160 |
| BA900BGB50002A | BT50-30° | 34.5 | 69 | 16 | 5 | 9 | 5 | 37 | 8 | 35 | 160 |
| BA900BGB50003A | BT50-90° | 34.5 | 69 | 16 | 5 | 9 | 5 | 37 | 8 | 35 | 160 |
| BA900BGB60001A | BT60-45° | 40 | 96 | 23 | 6.5 | 16 | 5 | 49.5 | 10.5 | 70 | 450 |
Due to the large variety of types and angles, we import these on demand for your specific need.
