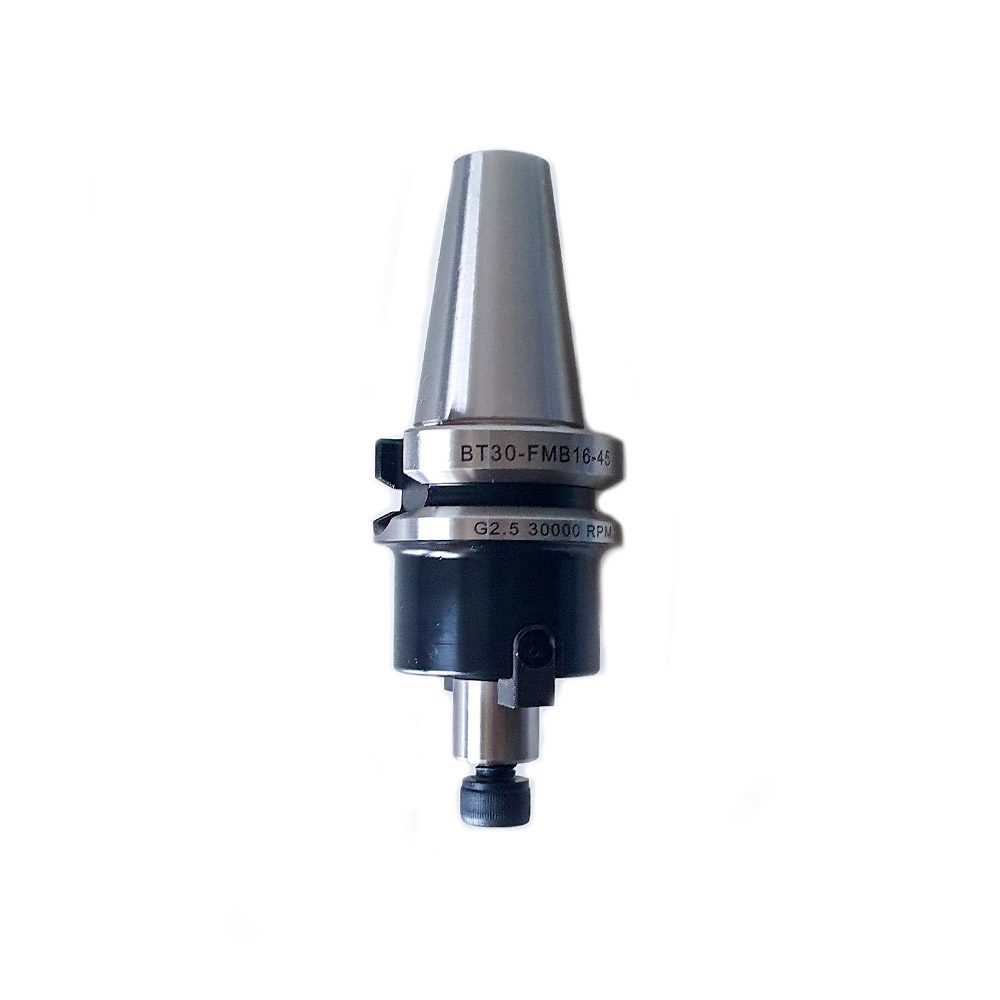

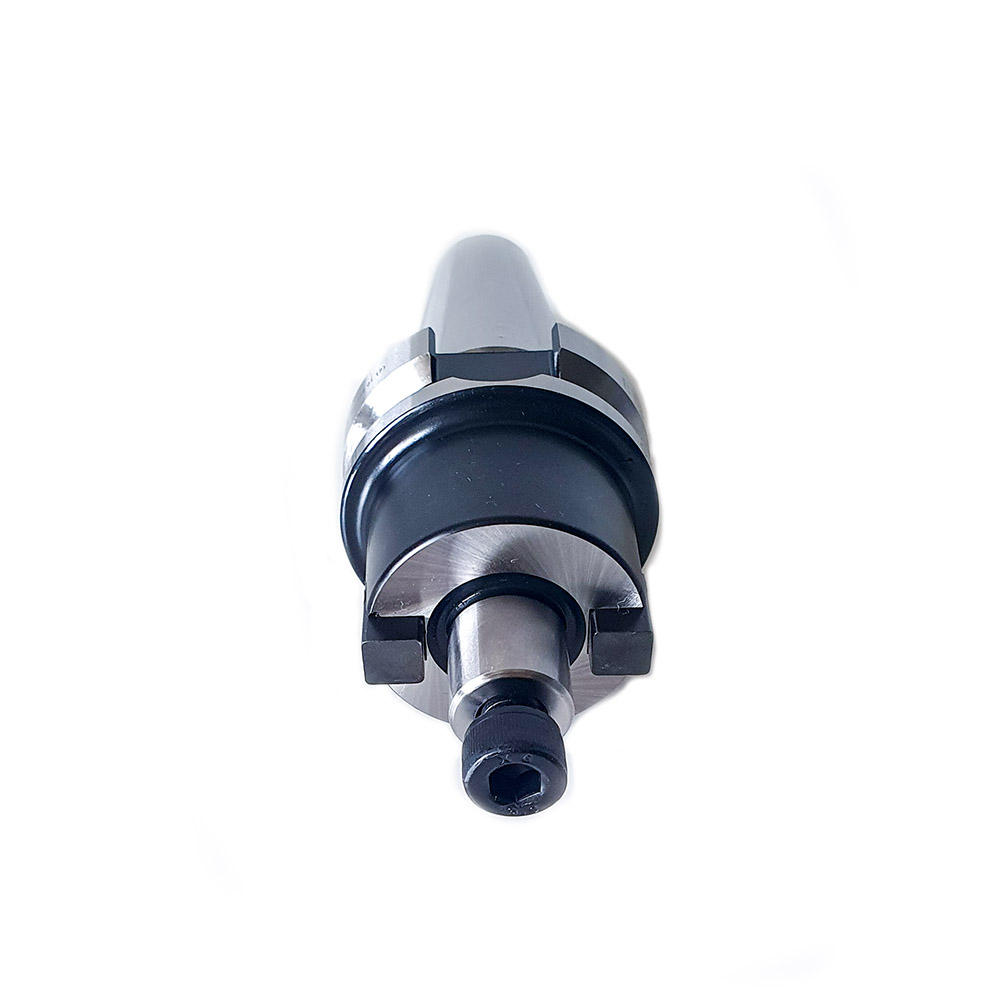

BT30 FACE MILL ARBORS

Description

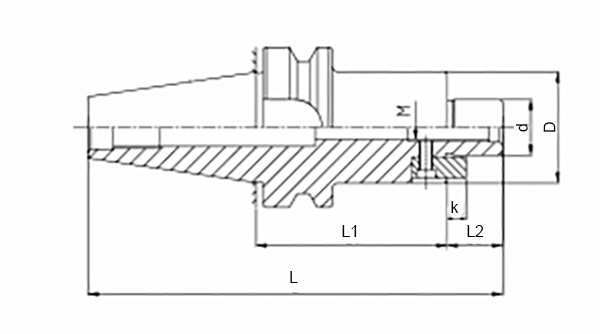

Model	L	L1	L2	L3	d	D	k	W	AD/B
BT30-FMB16-045					16				no
BT30-FMB22 AD/B 045	111.4	45	23	18	22	48	4.8	10	yes
BT30-FMB22 AD/B 060	126.4	60	38	18	22	48	4.8	10	yes
BT30-FMB27 AD/B 045	113.4	45	23	20	27	60	5.8	12	yes
BT30-FMB27 AD/B 060	128.4	60	38	20	27	60	5.8	12	yes

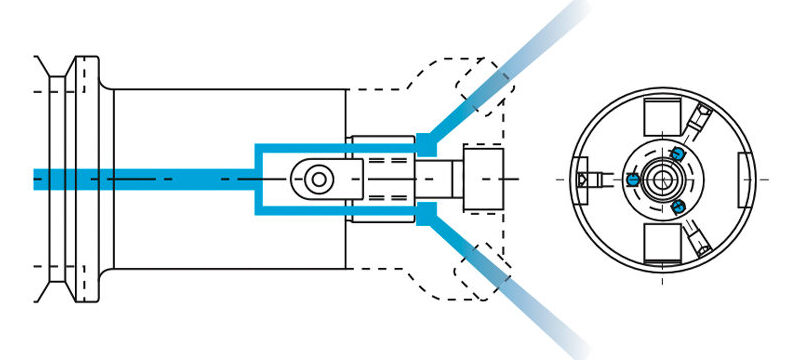

AD/B allows the coolant from through spindle coolant machines to flush the chips and cool inserts on through coolant face mill heads. A through coolant pullstud is also required on the appropriate machine,
