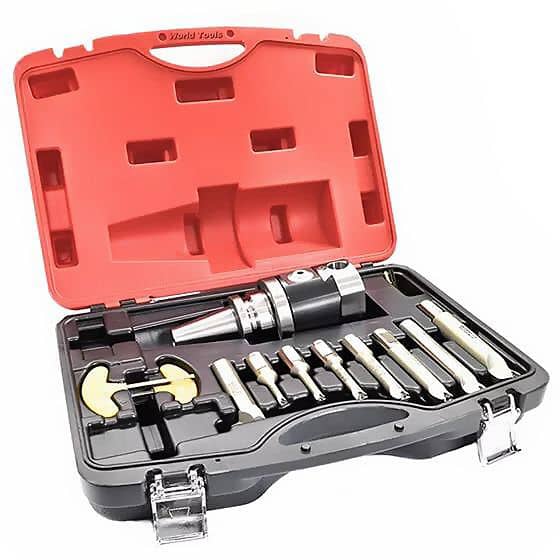

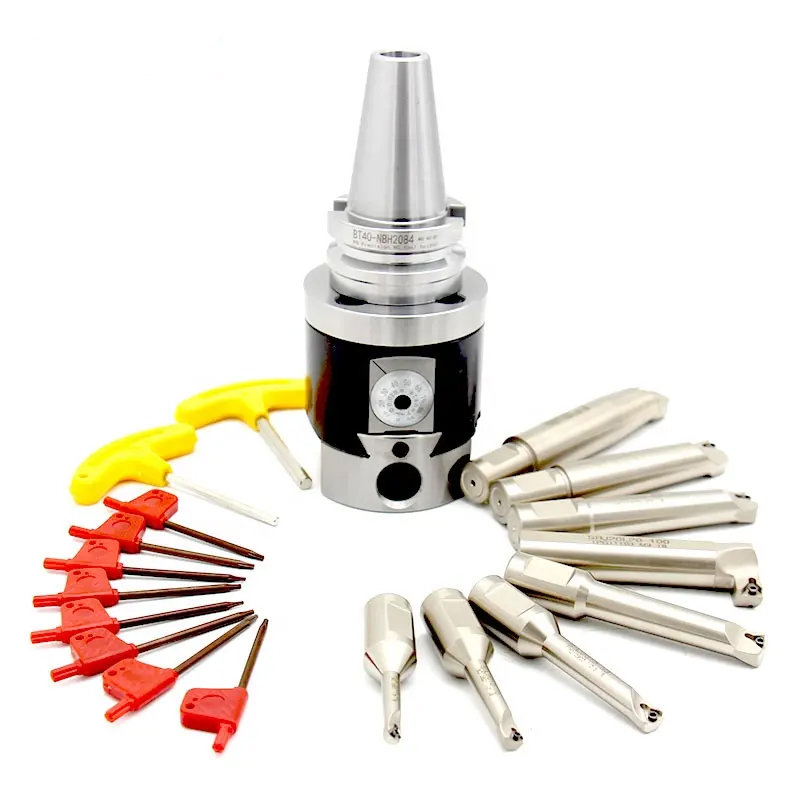

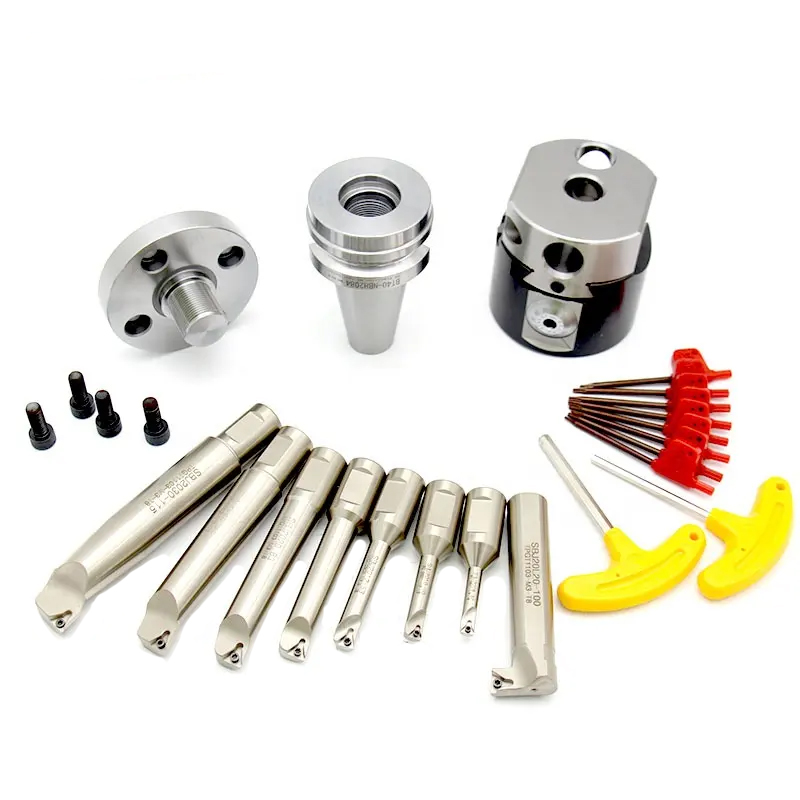

BT40 Boring Head Set
R12,560.00 Excl VAT
Only 1 left in stock
Description
This set features:

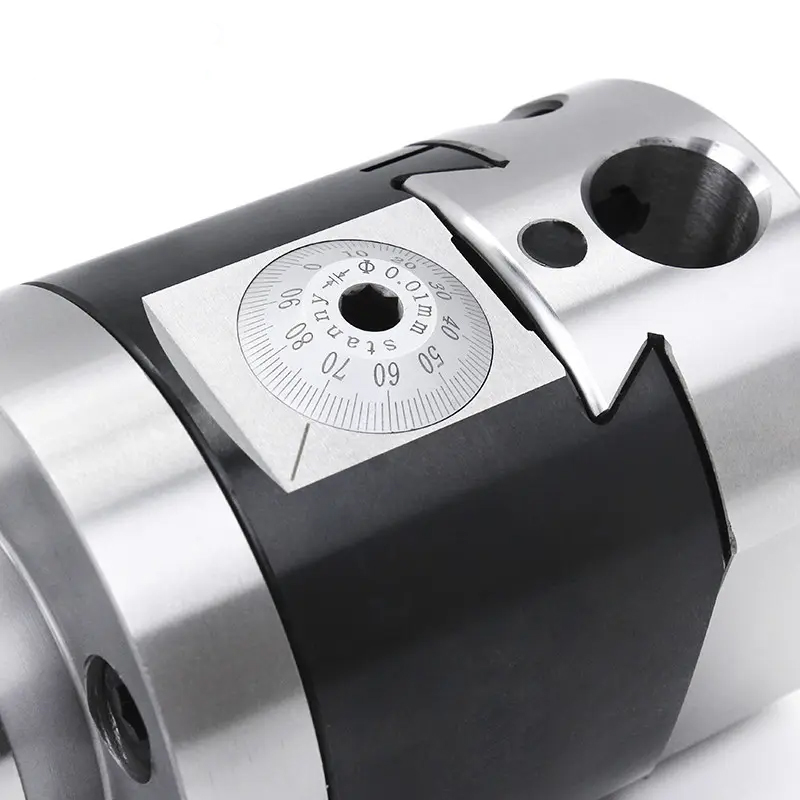

- fine adjustment
- boring bar range 8 – 280 mm
- boring bar size: 20mm
- fine feed graduation: 0.01mm
- side block stroke: 25mm

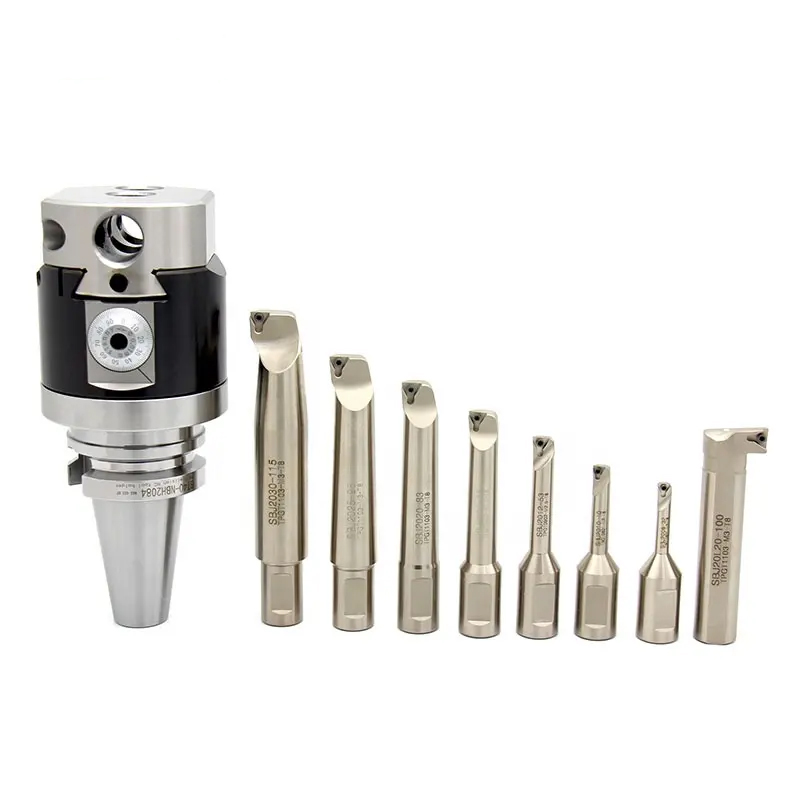

| Model | Boring Range | Depth | Insert | Screw | Wrench |
|---|---|---|---|---|---|
| SBJ2008-32 | 8-11mm | 32mm | TBGT0601__L | TS20040S | T6F |
| SBJ2010-40 | 10-13mm | 40mm | TBGT0601__L | TS20040S | T6F |
| SBJ2012-53 | 12-17mm | 53mm | TPGH0902__L | TS25050S | T8F |
| SBJ2016-68 | 16-21mm | 68mm | TPGH0902__L | TS25050S | T8F |
| SBJ2020-83 | 20-130mm | 83mm | TPGH1103__L | TS30060S | T8F |
| SBJ2025-96 | 25-135mm | 96mm | TPGH1103__L | TS30060S | T8F |
| SBJ2030-115 | 30-140mm | 115mm | TPGH1103__L | TS30060S | T8F |
| SBJ2020-L | 120-280mm | 84 + BTL1 | TPGH1103__L | TS30060S | T8F |
Inserts (not included):
TBGT060102
TBGT060104
TPGH090202
TPGH090204
TPGH10302
TPGH110304
Additional information
| Weight | 8.000 kg |
|---|---|
| Dimensions | 42 × 32 × 13 cm |
