BT40 to ISO40 Converter

SKU 3466 Category Tags ,

OTT pull stud adapter that lets BT40 taper tool holders run on machines with a DIN 2080 OTT clamping system. M16 thread, 56 mm overall length, Art. 3466.

R450.00 Excl VAT

Only 1 left in stock

Description

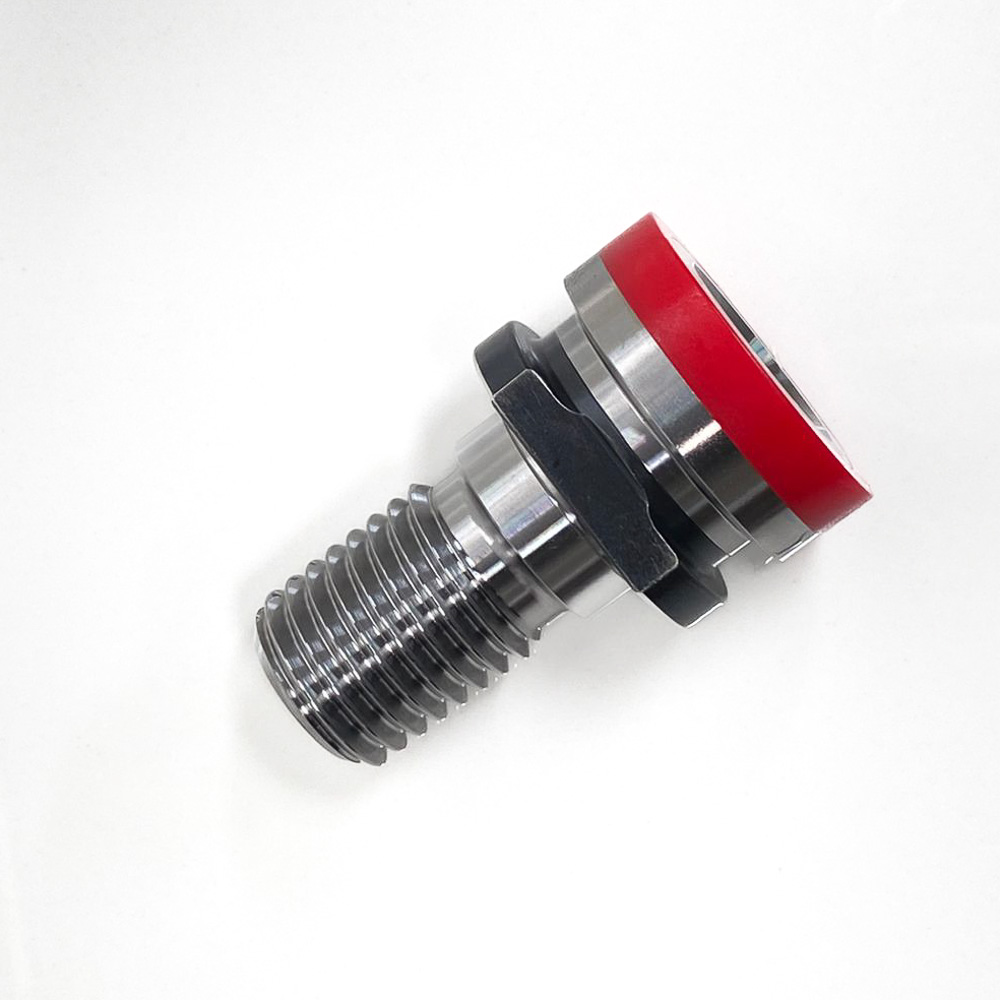

The BT40 pull stud adapter is a BT40 to DIN 2080 adapter that lets you use BT40 tool holders on machines with an OTT clamping system built for DIN 2080 (ISO 40) tapers. It screws into the tool holder’s M16 thread and gives the spindle drawbar a secure OTT grip, so you can run BT40 holders without changing your spindle. Use it as an OTT pull stud for BT40 holders.

Key features of the BT40 pull stud adapter

  • Converts BT40 tool holders to DIN 2080 OTT clamping
  • M16 thread for a direct fit into standard BT40 holders
  • Hardened steel body for reliable, repeatable clamping force
  • Red OTT grip collar for quick identification in the tool magazine

Specifications

  • Type: OTT M16, BT 40
  • Article number: 3466
  • Thread (M / M1): M16 / M16
  • Head diameter (D): 25.3 mm
  • Collar diameter (D1): 17 mm
  • Overall length (L): 56 mm
  • L1: 28 mm
  • L2: 16.6 mm

Size range: OTT pull stud adapters to DIN 2080

The BT40 version (Art. 3466) is one of three OTT pull stud adapters for DIN 2080 clamping. All dimensions are in mm. M and M1 are thread sizes, D is the head diameter, D1 the collar diameter and L the overall length.

Type Art. M M1 D (mm) D1 (mm) L (mm) L1 (mm) L2 (mm)
OTT M16 TC 40 3487 M16 M16 25.3 17 53 25 13.6
OTT M16 BT 40 3466 M16 M16 25.3 17 56 28 16.6
OTT M24 Taper 50 0087 M24 M24 39.6 25 65 25 13

BT40 to DIN 2080 adapter compatibility

Suits CNC milling machines and machining centres with OTT drawbar systems that use DIN 2080 taper 40 spindles. Also available for DIN 69871 taper 40 (Art. 3487) and taper 50 (Art. 0087).

Typical applications of the BT40 to DIN 2080 adapter

Used to run BT40 tool holders, such as end mill holders, collet chucks and face mill arbors, on milling machines and machining centres with an OTT drawbar.

Why choose this BT40 pull stud adapter

It is a low cost way to fit BT40 tooling to older or OTT equipped machines, saving you from buying a dedicated set of DIN 2080 holders. The BT40 pull stud adapter lets one machine run both BT40 and DIN 2080 tool holders. Fit one BT40 to DIN 2080 adapter to each BT40 holder you want to use. A BT40 to DIN 2080 adapter screws into the M16 thread and works like a standard OTT pull stud.

BT40 pull stud adapter FAQs

What does the BT40 pull stud adapter do?

It lets you use BT40 tool holders on a machine with an OTT drawbar built for DIN 2080 (ISO 40) tapers. It screws into the holder’s M16 thread.

Is there a BT40 to DIN 2080 adapter for DIN 69871 holders?

Yes. Use Art. 3487 for DIN 69871 taper 40 holders. This version, Art. 3466, is for BT40 holders, and Art. 0087 suits taper 50.

Does it replace a standard OTT pull stud?

Yes. It works like an OTT pull stud on a BT40 holder, giving the drawbar a secure OTT grip without changing your spindle.

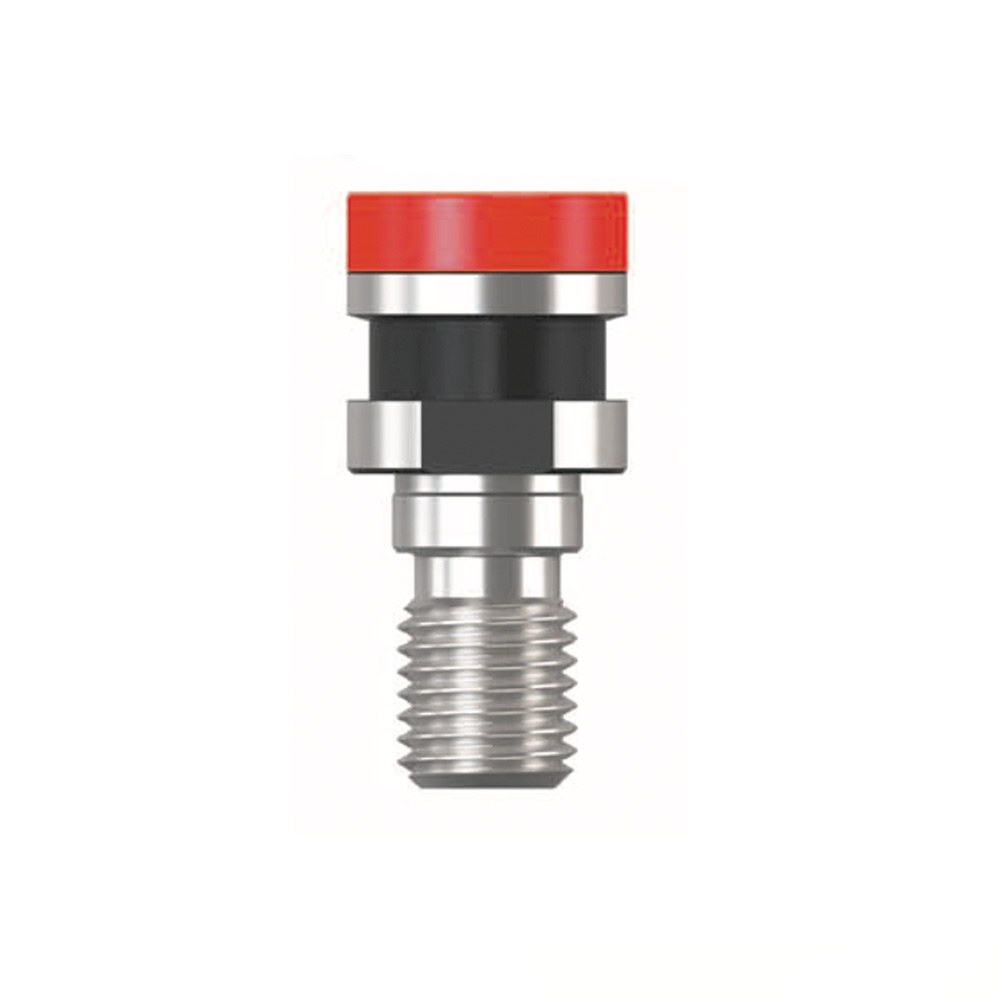

OTT40 Pullstud
OTT40 Pullstud

Additional information

Weight 0.9 kg
Dimensions 6.5 × 2.5 × 2.5 cm
