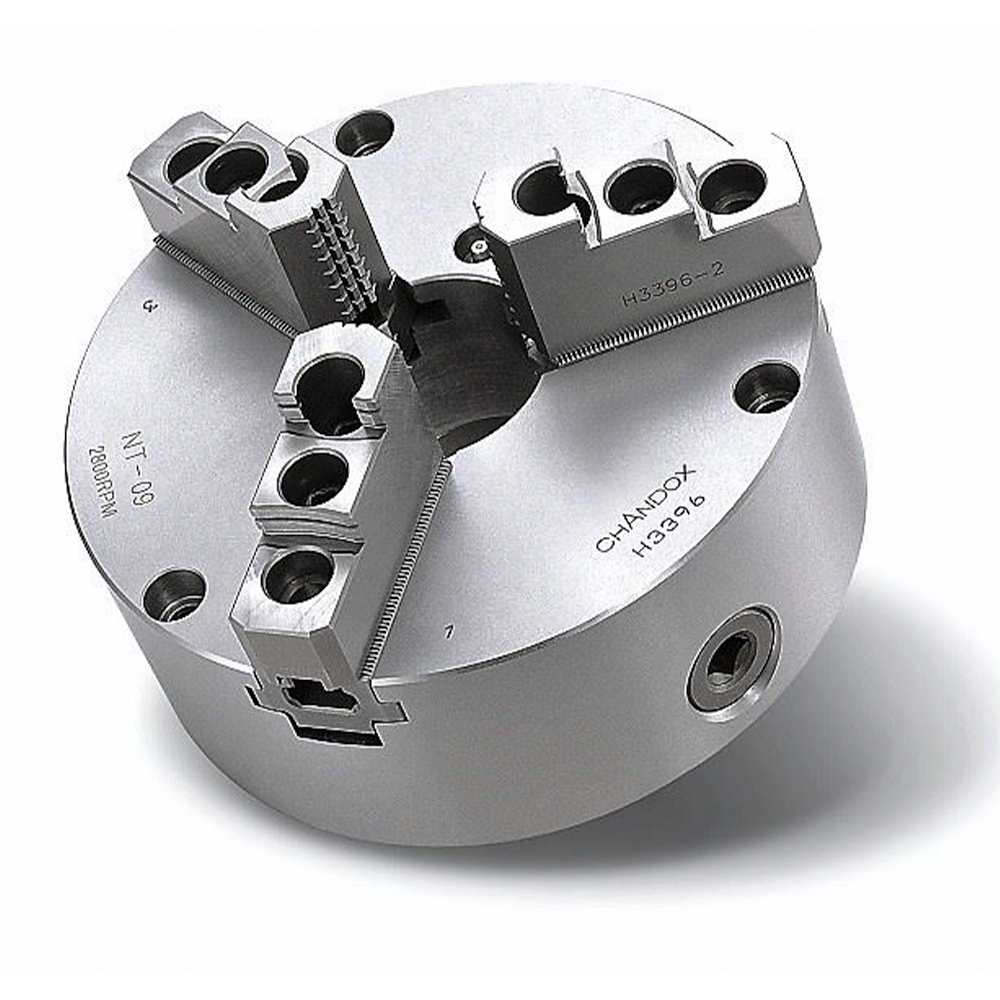

CHANDOX Steel Body Manual Chucks
All Steel Body Chucks are offered ex import. Start the conversation via the contact us email or the whatsapp chat.
Description

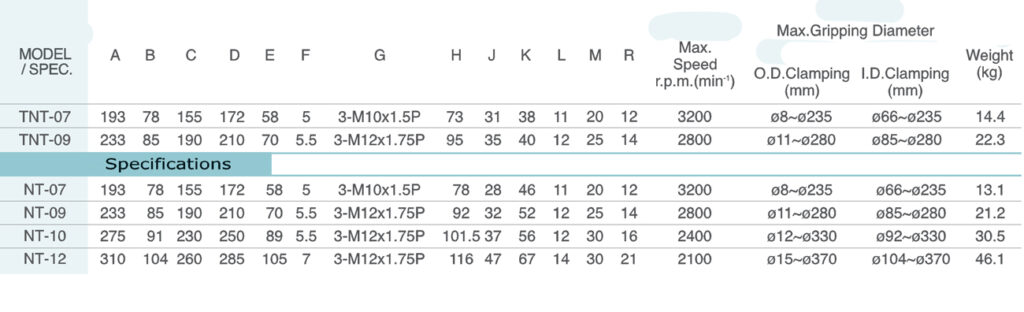

| Outside Diameter (mm) | MODEL / SPEC | Max.Speed r.p.m(min-1) |
Max.Gripping Diameter O.D.Clamping |
Max.Gripping Diameter I.D.Clamping |
Weight (kg) |
|---|---|---|---|---|---|
|
193
|
TNT-07 | 3200 | ø8-ø235 | ø66-ø235 | 13.1 |
|
233
|
TNT-09 | 2800 | ø11-ø280 | ø85-ø280 | 21.2 |
|
193
|
NT-07 | 3200 | ø8-ø235 | ø66-ø235 | 13.1 |
|
233
|
NT-09 | 2800 | ø11-ø280 | ø85-ø280 | 21.2 |
|
275
|
NT-10 | 2400 | ø12-ø330 | ø92-ø330 | 30.5 |
|
310
|
NT-12 | 2100 | ø15-ø370 | ø104-ø370 | 46.1 |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (mm) | 193, 233, 275, 310 |
| Jaws | 2, 3 |
