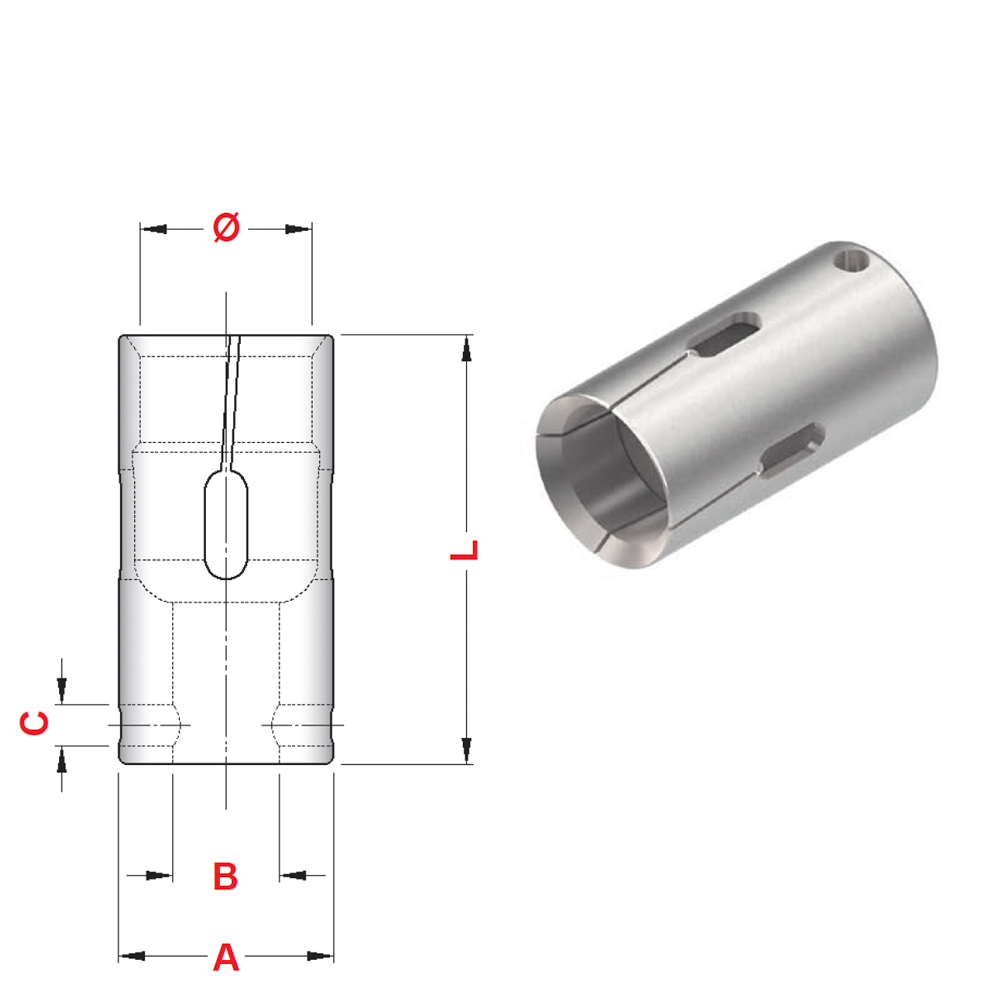

Clamping Sleeves for Automazioni Bar Feeders
All sizes offered ex import from Italy
Description

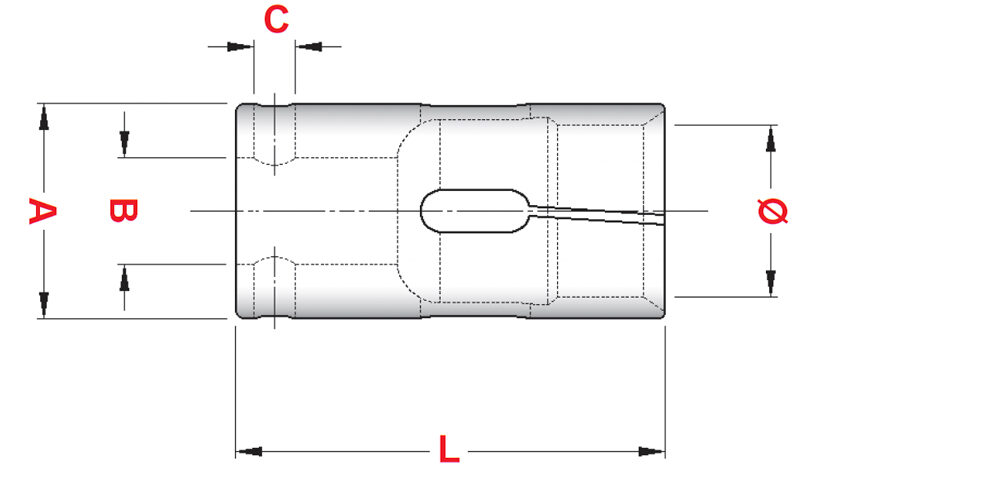

| Art Number | A | L | min dia | max dia | C | B |
|---|---|---|---|---|---|---|
| 9700 | 18 | 80 | 4 | 13 | 5 | 14 |
| 9701 | 20 | 80 | 5 | 17 | 5 | 14 |
| 9702 | 25 | 80 | 15 | 22 | 5 | 14 |
| 9703 | 30 | 80 | 20 | 28 | 8 | 20 |
| 9704 | 35 | 80 | 26 | 30 | 8 | 20 |
| 9705 | 40 | 80 | 30 | 38 | 8 | 20 |
| 9706 | 45 | 80 | 35 | 42 | 8 | 20 |
| 9707 | 50 | 80 | 40 | 47 | 8 | 20 |
| 9708 | 55 | 80 | 45 | 52 | 8 | 20 |
| 9709 | 60 | 80 | 30 | 55 | 8 | 20 |
| 9710 | 65 | 80 | 55 | 60 | 8 | 20 |
| 9711 | 70 | 80 | 61 | 65 | 8 | 20 |
| 9712 | 75 | 80 | 66 | 70 | 8 | 20 |
| 9713 | 75 | 80 | 66 | 70 | 8 | 30 |
| 9714 | 80 | 80 | 71 | 75 | 8 | 30 |
| 9715 | 85 | 95 | 76 | 80 | 8 | 35 |
| 9716 | 90 | 95 | 81 | 85 | 8 | 35 |
| 9717 | 95 | 95 | 86 | 90 | 8 | 35 |
| 9718 | 100 | 95 | 91 | 95 | 8 | 35 |
Additional information
| Weight | 0.760 kg |
|---|---|
| Dimensions | 6.6 × 6.6 × 11.5 cm |
| Outer diameter | 10, 12, 14, 15, 16, 18, 20, 22, 25, 30, 40, 42, 46, 60, 65, 69.5, 75 |
