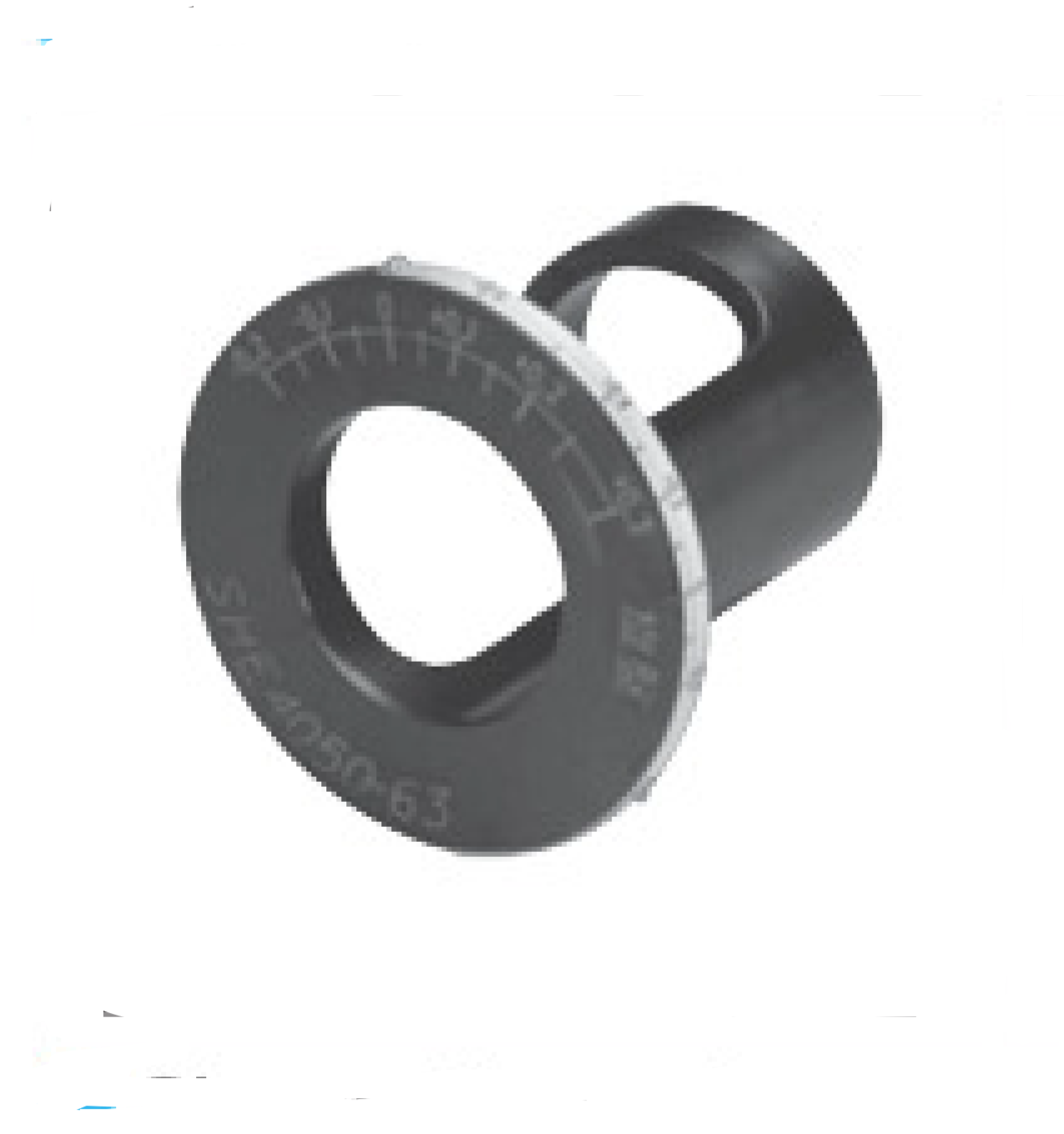

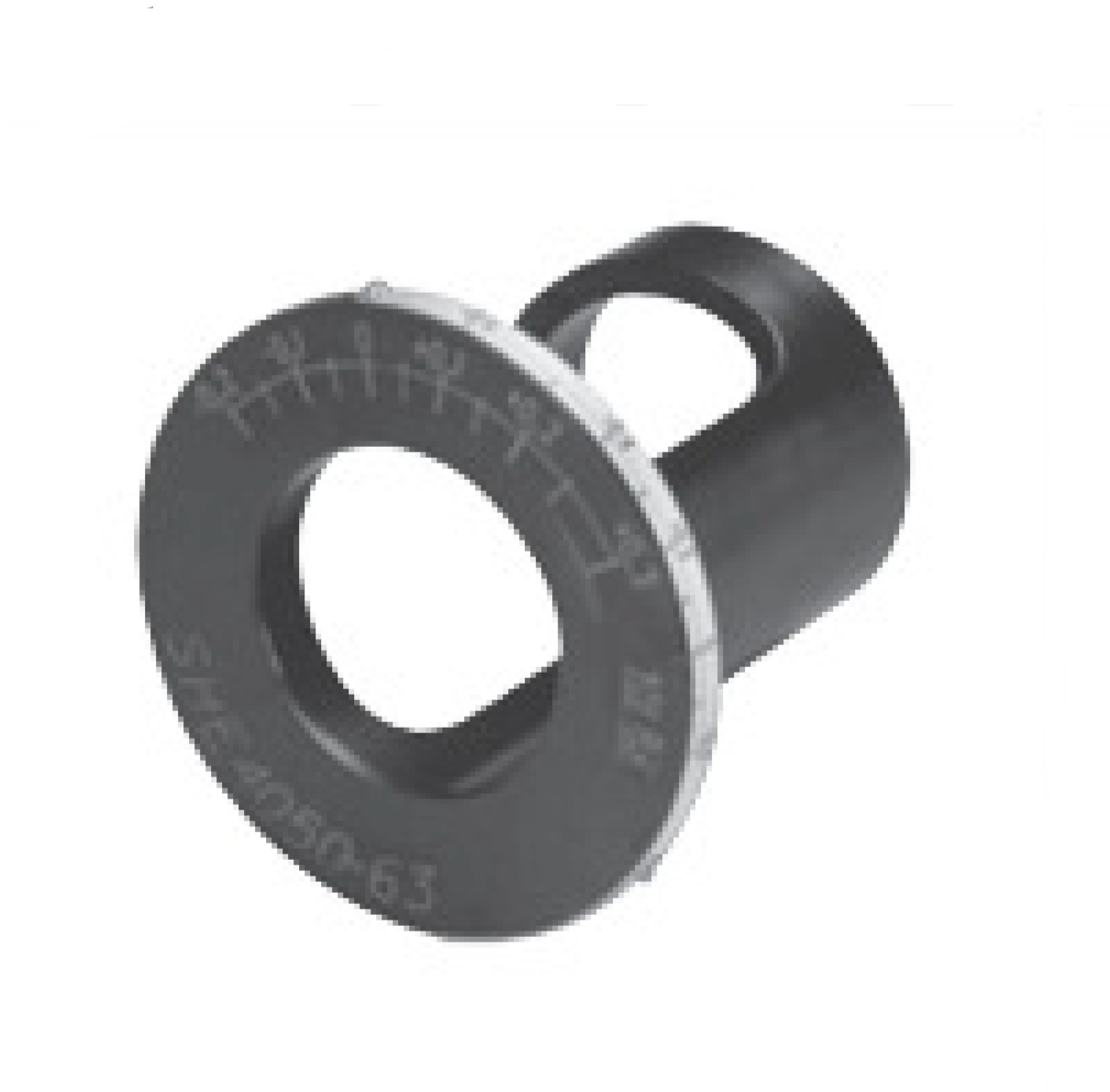

Eccentric Sleeve
Price range: R750.00 through R950.00 Excl VAT
Description

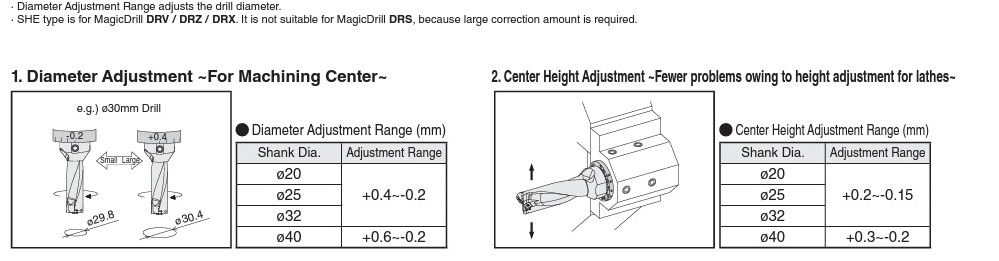

| Description | Dimensions (mm) | Drill Dia. Adjustable Range |
Center Height Adjustable Range |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DCB | DCON | DF | LS | L2 | L3 | L4 | ||||
| HT 2025-43 | 20 | 25 | 41 | 43 | 4 | 36 | 3.0 | +0.4 ~ −0.2 | +0.2 ~ −0.15 | |
| HT 2532-48 | 25 | 32 | 49 | 48 | 6 | 38 | 2.5 | +0.4 ~ −0.2 | +0.2 ~ −0.15 | |
| HT 3240-53 | 32 | 40 | 58 | 53 | 6 | 43 | 2.5 | +0.4 ~ −0.2 | +0.2 ~ −0.15 | |
| HT 4050-63 | 40 | 50 | 74 | 63 | 6 | 49 | 3.0 | +0.6 ~ −0.2 | +0.2 ~ −0.2 | |
Additional information
| Weight | 0.500 kg |
|---|---|
| Dimensions | 8.9 × 4.5 × 4.5 cm |
| OD (mm) | 50, 40, 32, 25 |
