In-Row Vice - Forcing Direction

Description

FORCING DIRECTION

Model: HRV-50, 75, 100 (FD)

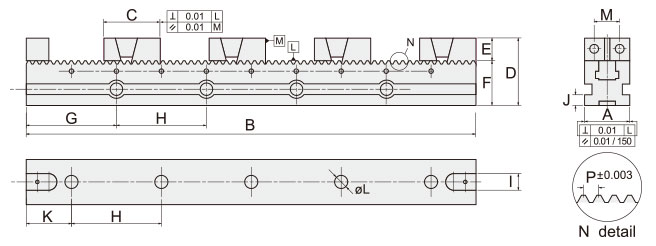

SPECIFICATIONS (Material: Tool Steel. Hardness: HRC 56º~60º )

Unit: mm

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	P	Clamping Force	Weight (kg)
HRV-5030-FD	50	300	66	75±0.01	25	50	70	80	18	10	30	14	24	1.5	1000	7
HRV-5040-FD		400					80				40				1000	9
HRV-5050-FD		500					90				50				1000	10
HRV-5060-FD		600					100				60				1000	11
HRV-5070-FD		700					110				70				1000	12
HRV-7543-FD	75	430	84	115±0.01	40	75	115	100	18	17	65	14	40	2	2000	20
HRV-7553-FD		530					115				65				2000	25.5
HRV-7563-FD		630					115				65				2000	31
HRV-7573-FD		730					65				115				2000	33.5
HRV-10055-FD	100	550	106	125±0.01	50	75	75	100	18	17	125	14	60	2.5	2700	40
HRV-10065-FD		650					125				75				2700	51
HRV-10075-FD		750					125				75				2700	55

HRV – In-Row Vise

The HRV In-Row Vise is a type of multiple vise. The complete unit is manufactured from tool steel and undergoes heat treatment to achieve a hardness of over HRC 60º. Each vise is then precisely ground to ensure long-term durability.

It offers an extended clamping range and can accommodate workpieces of various shapes—whether square, round, cylindrical, or irregular—with ease and speed. The precision tooth positioning system is adjustable, allowing workpieces to be secured effortlessly.

This vise is suitable for horizontal, vertical, and 4-axis CNC machining centres, as well as surface grinders, and more.

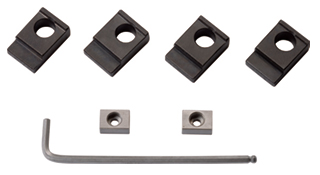

STANDARD ACCESSORIES:

2 pcs of Alignment Wedge
4 pcs of Clamp
1 pc of Handle

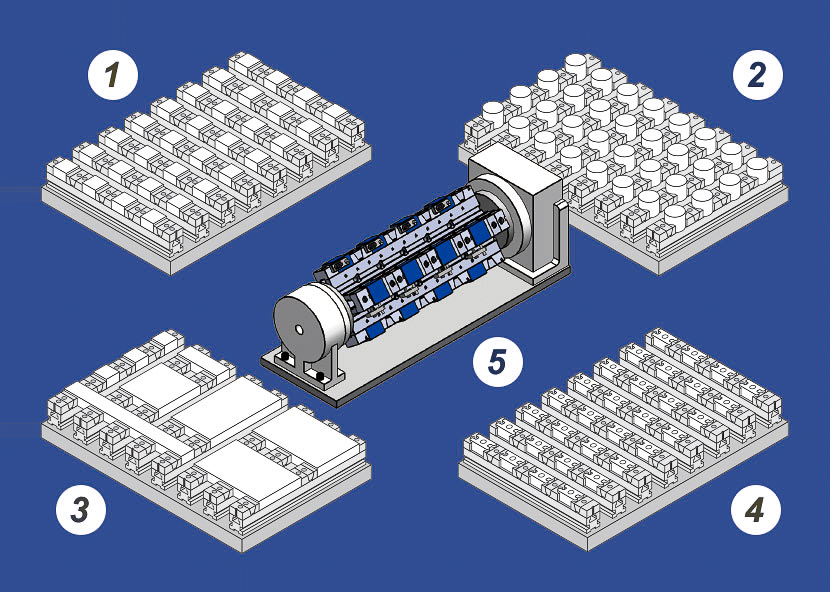

By clamping multiple small rectangular workpieces simultaneously, the machine table can be fully utilised, ensuring efficient operation.

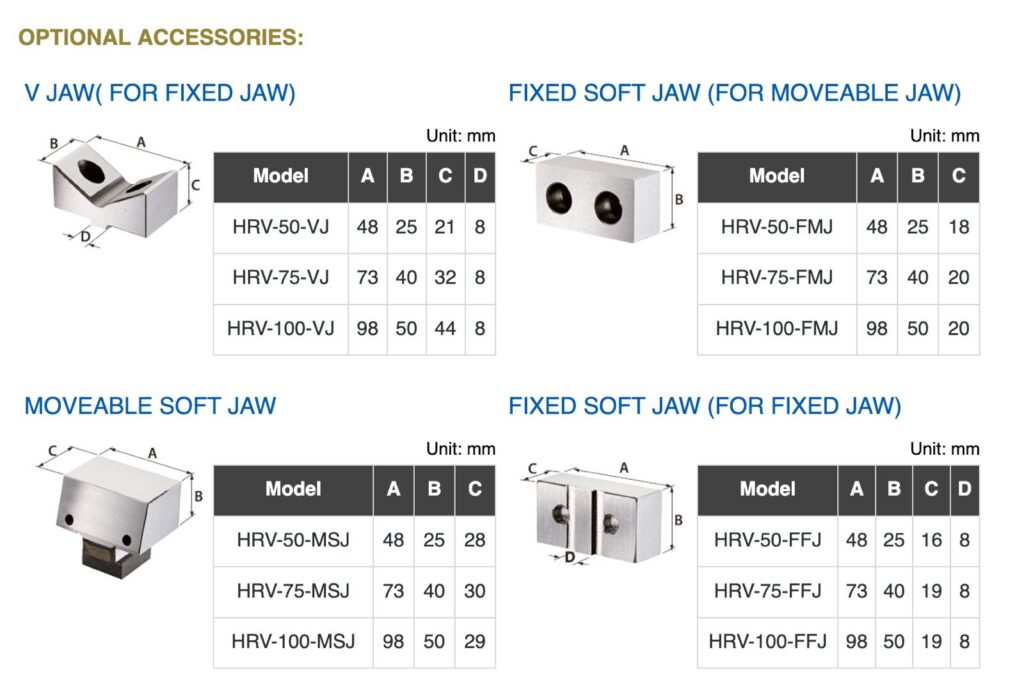

Cylindrical workpieces can be easily clamped using the optional V-jaw accessory.
One or more larger workpieces can be clamped flexibly at the same time.
Irregularly shaped workpieces can be clamped using optional soft jaws, which can be specially customised to meet specific clamping requirements.

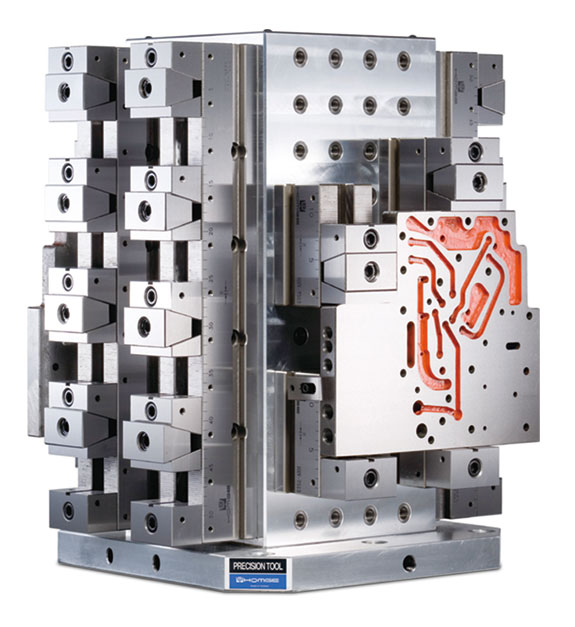

Suitable for use on 4-axis machining centres.

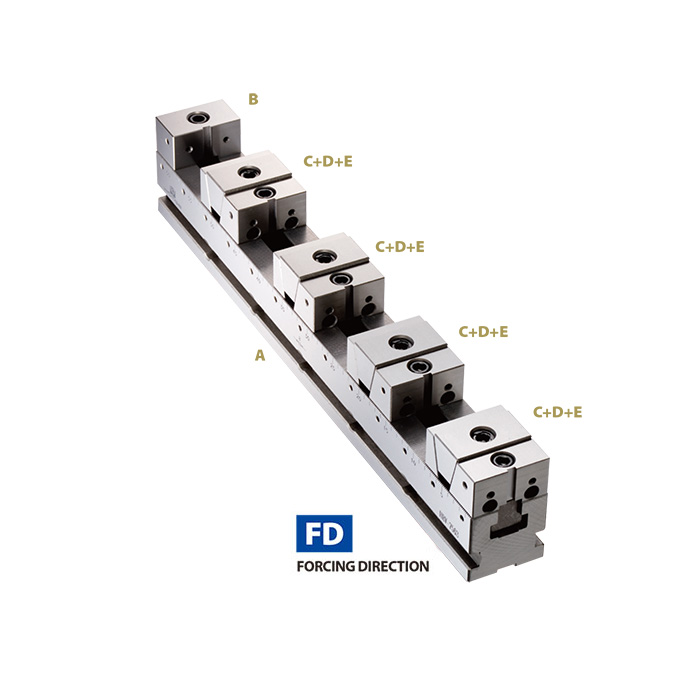

Forcing Direction Assembled Parts:

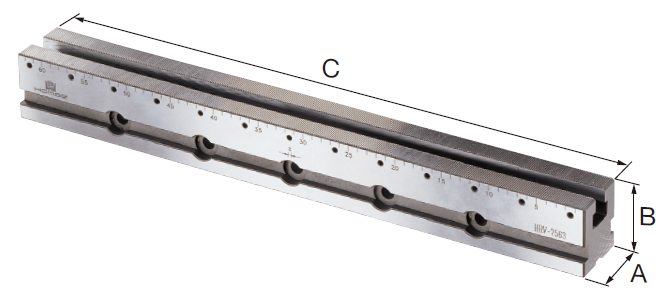

MAIN BODY

Unit: mm

Model	A	B	C
HRV-50A30	50	50	300
HRV-50A40	50	50	400
HRV-50A50	50	50	500
HRV-50A60	50	50	600
HRV-50A70	50	50	700
HRV-75A43	75	75	430
HRV-75A53	75	75	530
HRV-75A63	75	75	630
HRV-75A73	75	75	730
HRV-100A55	100	75	550
HRV-100A65	100	75	650
HRV-100A75	100	75	750

FIXED MOUTHPIECE SET

Model	A	B	C	D
HRV-50B	48	35	25	8
HRV-75B	73	42	40	8
HRV-100B	98	60	50	8

WEDGE SET

Model	A	B	C
HRV-50D	48	26	21
HRV-75D	72	42	36
HRV-100D	98	50	45

SINGLE BEVEL FIXED MOUTHPIECE SET

Model	A	B	C
HRV-50C	48	27	25
HRV-75C	72	30	40
HRV-100C	98	35	50

SINGLE BEVEL MOVEABLE MOUTHPIECE SET

Model	A	B	C
HRV-50E	48	13	25
HRV-75E	73	12	40
HRV-100E	98	21	50

Additional information

Size	GT125, GT150B
