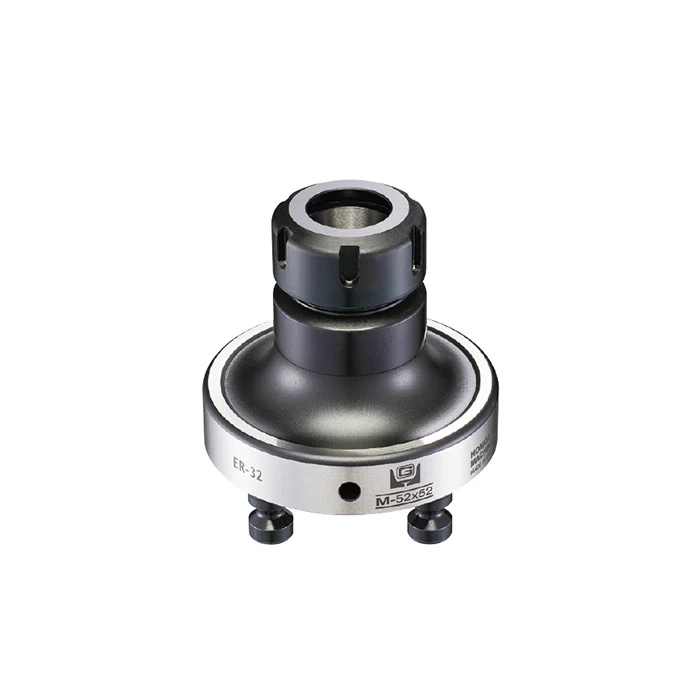

M-52×52 4th/5th Axis Vice Collet Chuck
Compatible with LANG and other popular brands. Both collet chucks are on the 52×52 hole pattern
Description
The zero point quick change device combined with the collet chuck is designed for milling and clamping round parts, and ensures optimal accessibility during milling operations.
SPECIFICATIONS
Unit: mm

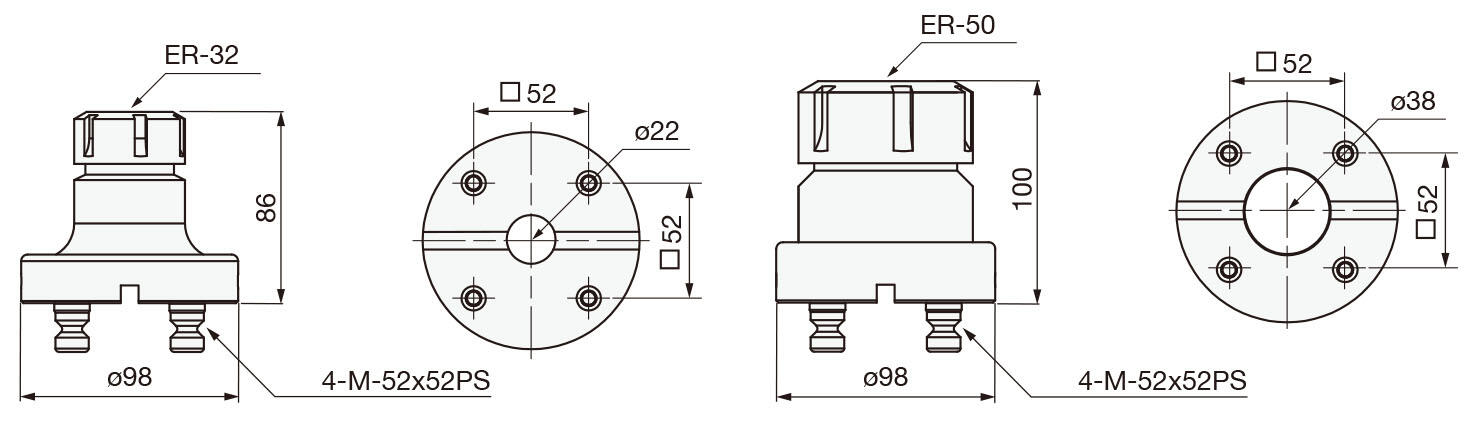

| Model | LxWxH | Clamping Range | Pull Stud No. | Weight (kg) |
|---|---|---|---|---|
| M-52×52(ER32)C | Ø98×86 | Ø1-20mm | M-52x52PS | 2 |
| M-52×52(ER50)C | Ø98×100 | Ø10-34mm | M-52x52PS | 3.1 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 20 × 20 × 12 cm |
| Size | ER32, ER50 |
