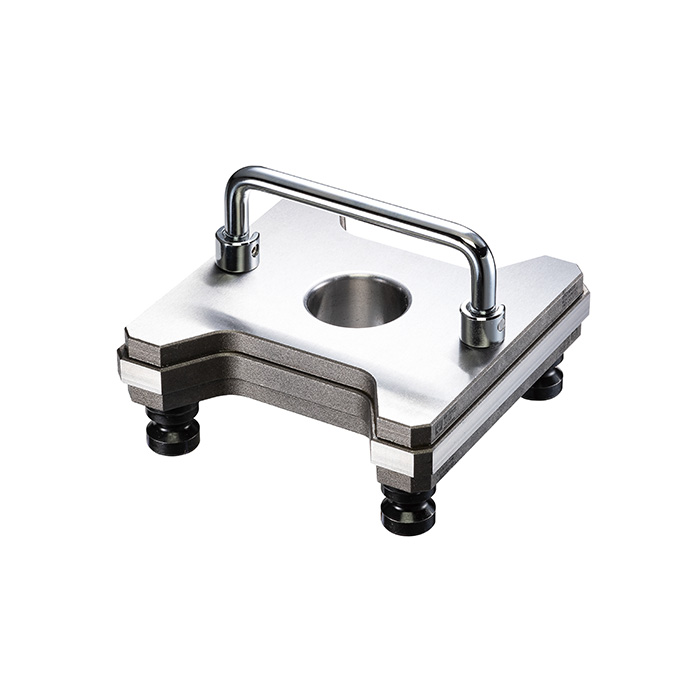

Master Gauge Plate 96×96
R14,880.00 Excl VAT
Only 1 left in stock
Compatible with LANG and other popular brands.
Description
Suitable for quick checking the precise alignment of Quick Changing Plates and for concentric alignment of rotary or chucks.
How it works:
After clamping the gauging pallet in a Quick Change Device – plate, the axial alignment of the Quick Change Device – plate is done by probing the jig-ground sides of the gauging pallet. For a concentric alignment the inner diameter of the gauging pallet can be used.

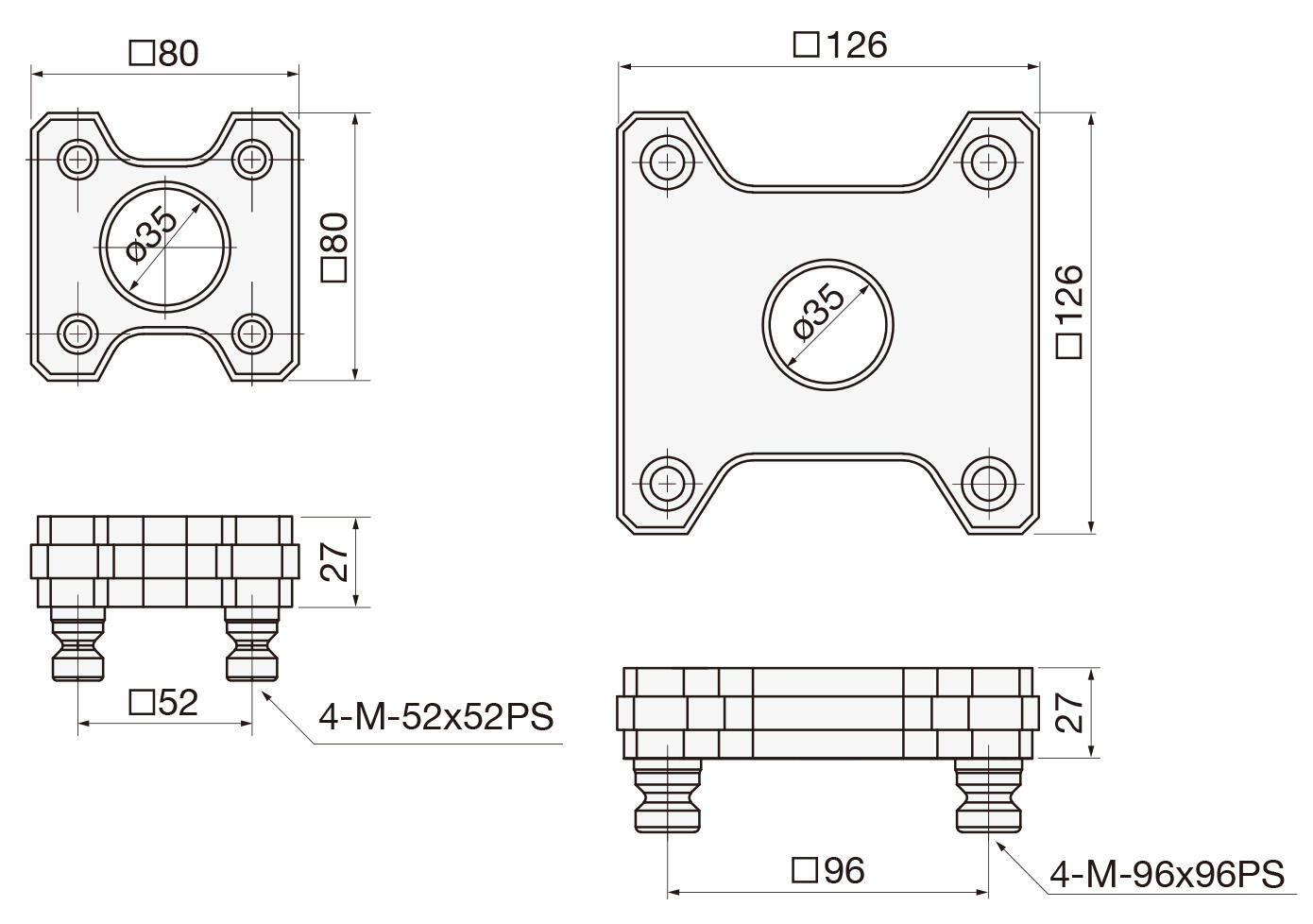

| Model | LxWxH | Pull Stud No. | Weight (kg) |
|---|---|---|---|
| M-52×52(8010) | 86x86x30 | M-52x52PS | 1.5 |
| M-96×96(8058) | 130x130x30 | M-96x96PS | 2.4 |
Additional information
| Weight | 2.6 kg |
|---|---|
| Dimensions | 16 × 16 × 5 cm |
