Modular Vice
Price range: R11,533.00 through R14,900.00 Excl VAT
Description

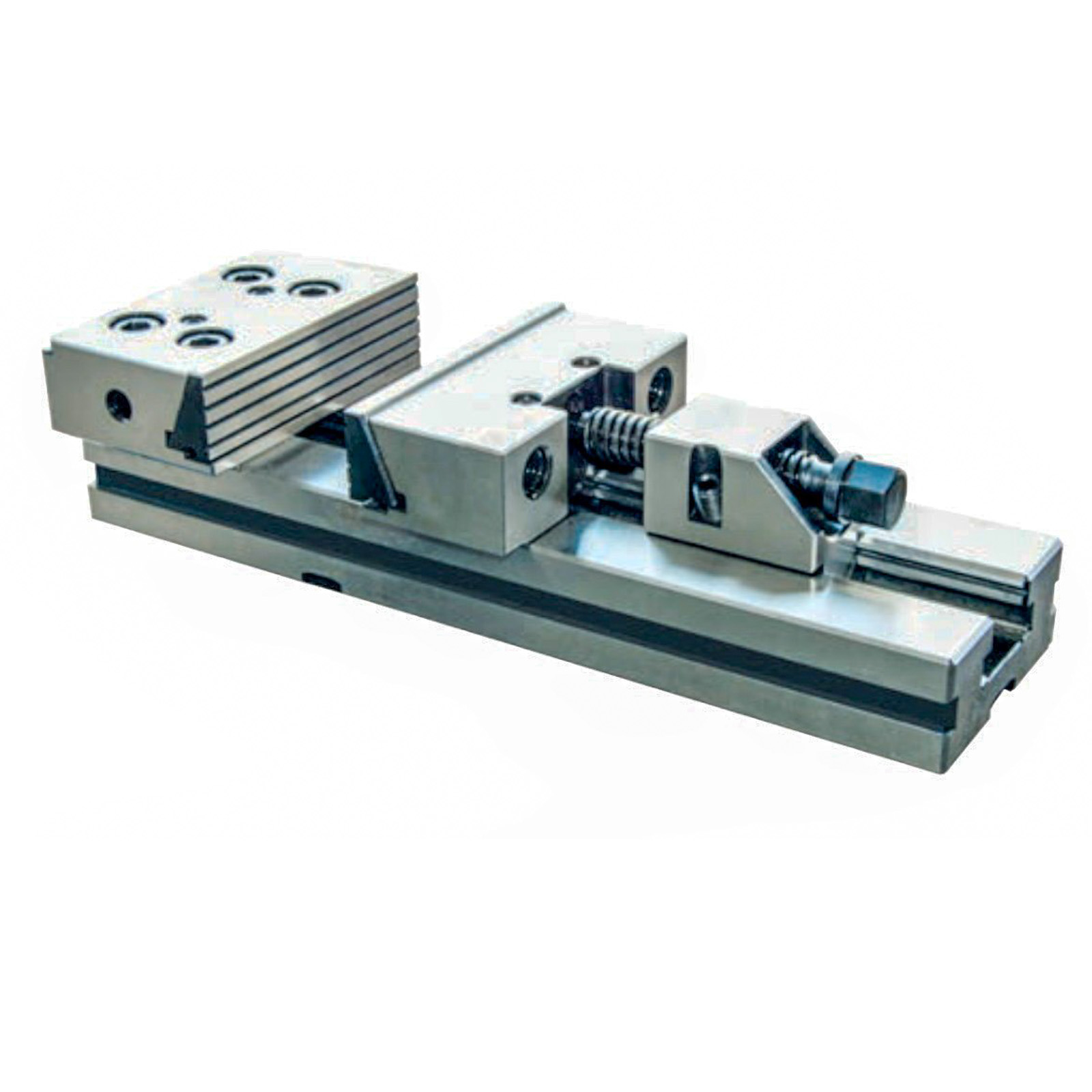

Hardened Modular Vice
Produced from high quality steel and hardened to HRC58-62. The modular vice is made to tight tolerances. Parallelism of 0.005mm/100mm and squareness of 0.005mm.
The vice is easy to use with the sliding jaw able to move the full length of the base.
The product is widely used on machining centers and other precision machine tools.

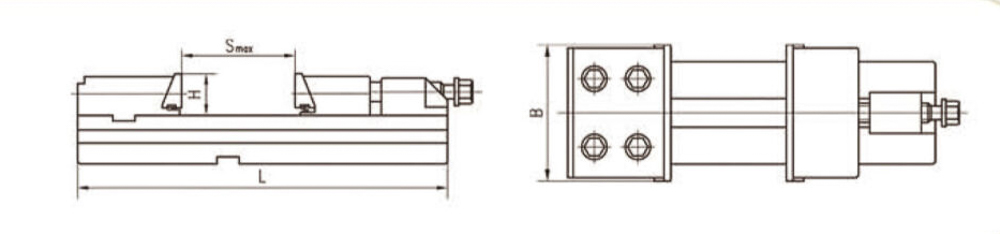

| Order No. | B (mm) | H (mm) | Smax (mm) | L (mm) | Clamping force |
|---|---|---|---|---|---|
| GT100–I | 100 | 30 | 100 | 270 | 3000 |
| GT125–I | 125 | 40 | 150 | 345 | 3000 |
| GT150A–I | 150 | 50 | 200 | 420 | 5000 |
| GT150B–I | 150 | 50 | 300 | 520 | 5000 |
| GT150C–I | 150 | 50 | 400 | 620 | 5000 |
| GT175A–I | 175 | 60 | 200 | 455 | 6000 |
| GT175B–I | 175 | 60 | 300 | 555 | 6000 |
| GT175C–I | 175 | 60 | 400 | 655 | 6000 |
| GT175D–I | 175 | 60 | 500 | 755 | 6000 |
| GT175E–I | 175 | 60 | 600 | 855 | 6000 |
| GT200A–I | 200 | 65 | 200 | 495 | 10000 |
| GT200B–I | 200 | 65 | 300 | 595 | 10000 |
| GT200C–I | 200 | 65 | 400 | 695 | 10000 |
| GT200D–I | 200 | 65 | 500 | 795 | 10000 |
| GT200E–I | 200 | 65 | 600 | 895 | 10000 |
| GT300A–I | 300 | 80 | 200 | 535 | 12000 |
| GT300B–I | 300 | 80 | 300 | 635 | 12000 |
| GT300C–I | 300 | 80 | 400 | 735 | 12000 |
| GT300D–I | 300 | 80 | 500 | 835 | 12000 |
| GT300E–I | 300 | 80 | 600 | 935 | 12000 |
| GT300F–I | 300 | 80 | 700 | 1035 | 12000 |
| GT300G–I | 300 | 80 | 800 | 1135 | 12000 |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | GT125, GT150B |
