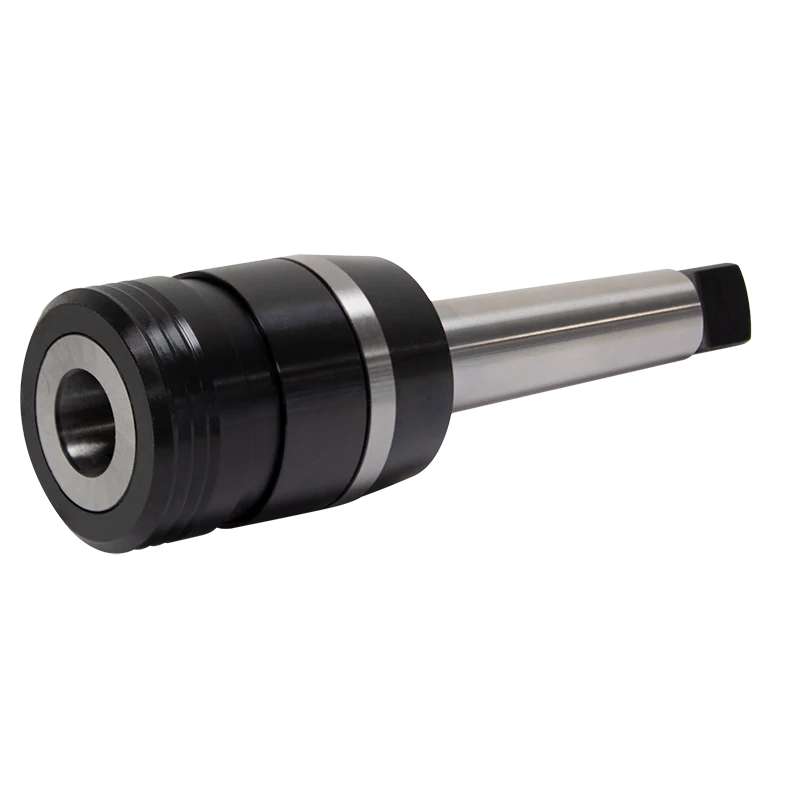

MORSE TAPER SHANK QUICK CHANGE TAPPING ARBORS
Price range: R2,290.00 through R3,800.00 Excl VAT
AXIAL LENGTH COMPENSATION ON TENSION AND PRESSURE
Tapping Collets Have Overload Safety
Choose the correct collet (not included with holder):
| TAP | DIN 371 | DIN 376 | ISO |
|---|---|---|---|
| M3 | 3.5×2.7 | 3.15×2.5 | |
| M4 | 4.5×3.4 | 2.8×2.1 | 4×3.15 |
| M5 | 6×4.9 | 3.5×2.7 | 5×4 |
| M6 | 6×4.9 | 4.5×3.4 | 6.3×5 |
| M8 | 8×6.2 | 6×4.9 | 8×6.3 |
| M10 | 10×8 | 7×5.5 | 10×8 |
| M12 | 9×7 | 9×7.1 | |
| M14 | 11×9 | 11.2×9 | |
| M16 | 12×9 | 12.5×10 | |
| M18 | 14×11 | 14×11.2 | |
| M20 | 16×12 | 14×11.2 | |
| M22 | 18×14.5 | 16×12.5 | |
| M24 | 18×14.5 | 20×16 |
TYPE A – with tang
TYPE B – with threads, tangs are available to convert to type A
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| SHANK SIZE | MT3, MT4, MT5 |
| QC SIZE | 19, 31, 48 |
