Morse Taper PIPE CENTERS
Price range: R2,800.00 through R7,700.00 Excl VAT
Description

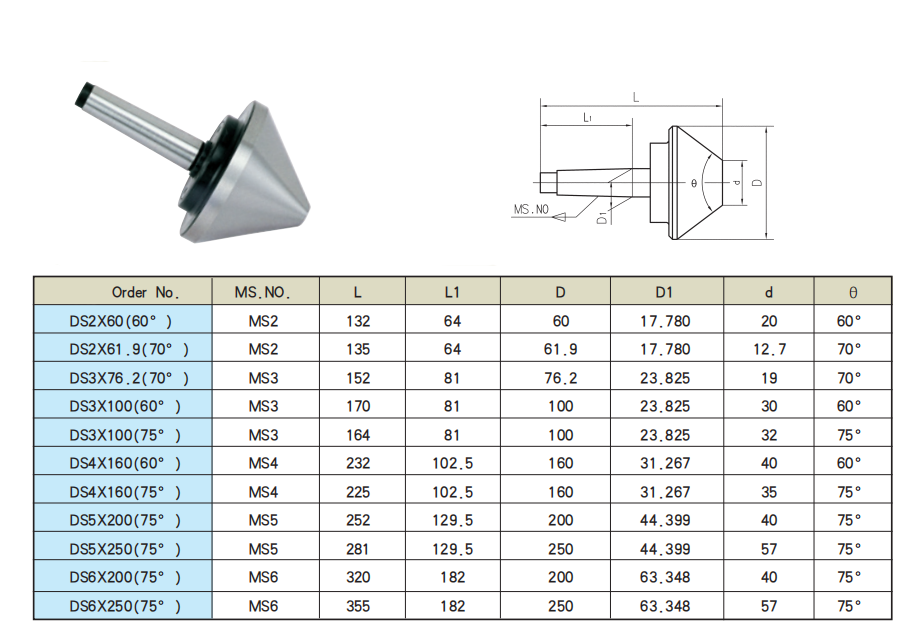

Pipe Center Dimensions & Specifications
| Order No. | MS No. | L (mm) | L1 (mm) | D (mm) | D1 (mm) | d (mm) | θ (degrees) |
|---|---|---|---|---|---|---|---|
| DS2X60 (60°) | MS2 | 132 | 64 | 60 | 17.780 | 20 | 60° |
| DS2X61.9 (70°) | MS2 | 135 | 64 | 61.9 | 17.780 | 12.7 | 70° |
| DS3X76.2 (70°) | MS3 | 152 | 81 | 76.2 | 23.825 | 19 | 70° |
| DS3X100 (60°) | MS3 | 170 | 81 | 100 | 23.825 | 30 | 60° |
| DS3X100 (75°) | MS3 | 164 | 81 | 100 | 23.825 | 32 | 75° |
| DS4X160 (60°) | MS4 | 232 | 102.5 | 160 | 31.267 | 40 | 60° |
| DS4X160 (75°) | MS4 | 225 | 102.5 | 160 | 31.267 | 35 | 75° |
| DS5X200 (75°) | MS5 | 252 | 129.5 | 200 | 44.399 | 40 | 75° |
| DS5X250 (75°) | MS5 | 281 | 129.5 | 250 | 44.399 | 57 | 75° |
| DS6X200 (75°) | MS6 | 320 | 182 | 200 | 63.348 | 40 | 75° |
| DS6X250 (75°) | MS6 | 355 | 182 | 250 | 63.348 | 57 | 75° |

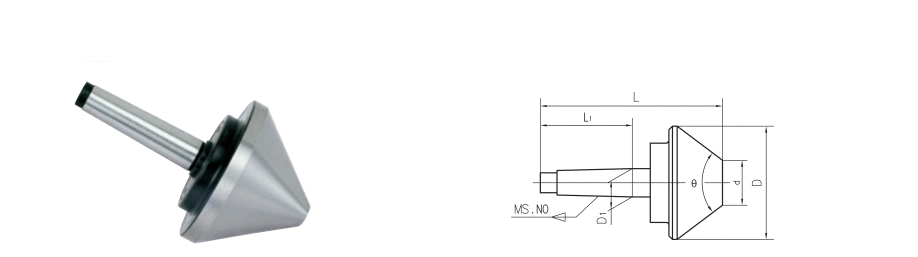

Browse the available bull nose center sizes and specifications, including
Morse taper sizes MS2 to MS6, overall length, L1 length, outside diameter,
D1 diameter, shank diameter and nose angle. Available models include 60°,
70° and 75° configurations.
Additional information
| Weight | 2.680 kg |
|---|---|
| Dimensions | 11.5 × 11.5 × 18.5 cm |
| MT Size | MT3, MT3 x 60 deg, MT4, MT4 x 60 deg, MT5, MT5 x 60 deg |
