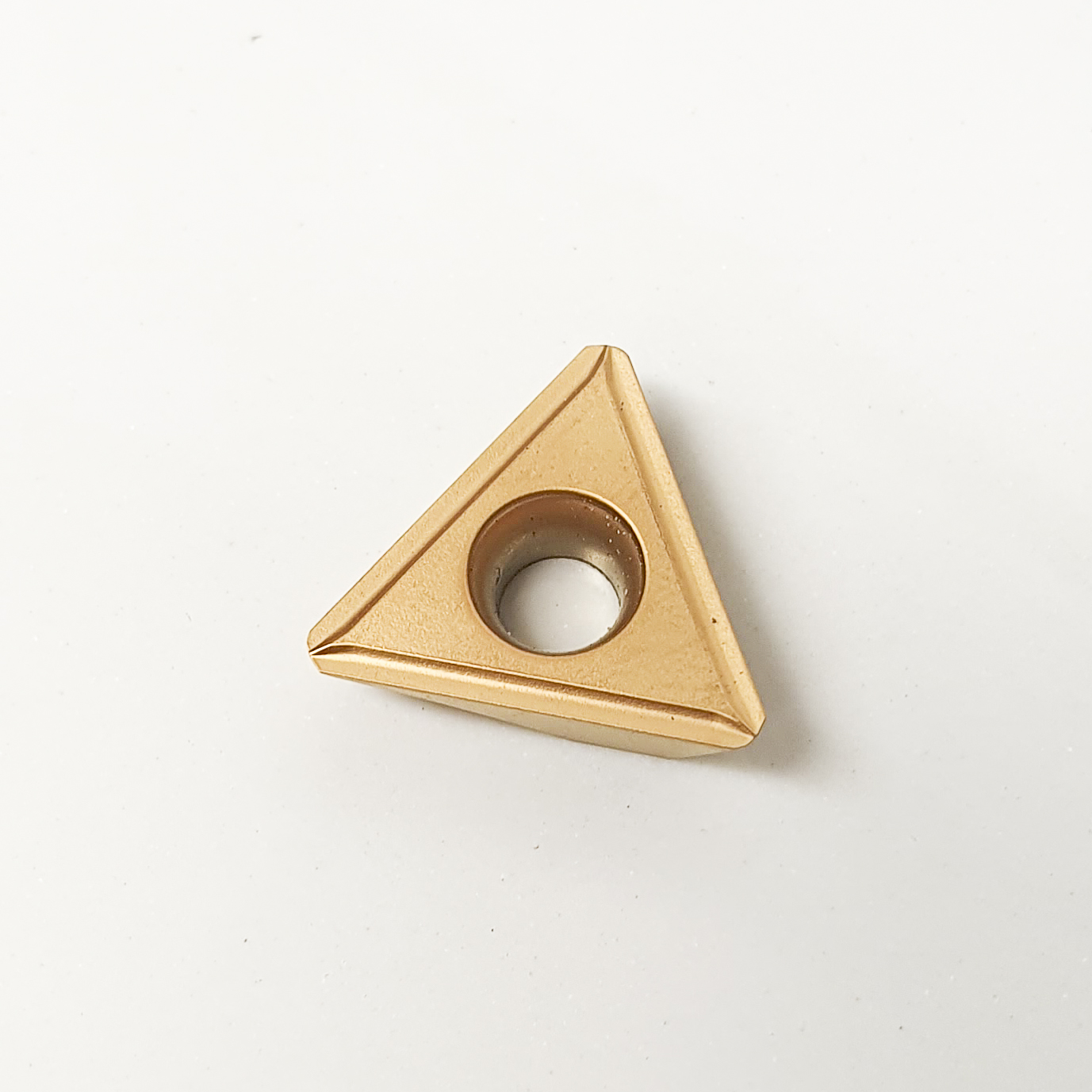

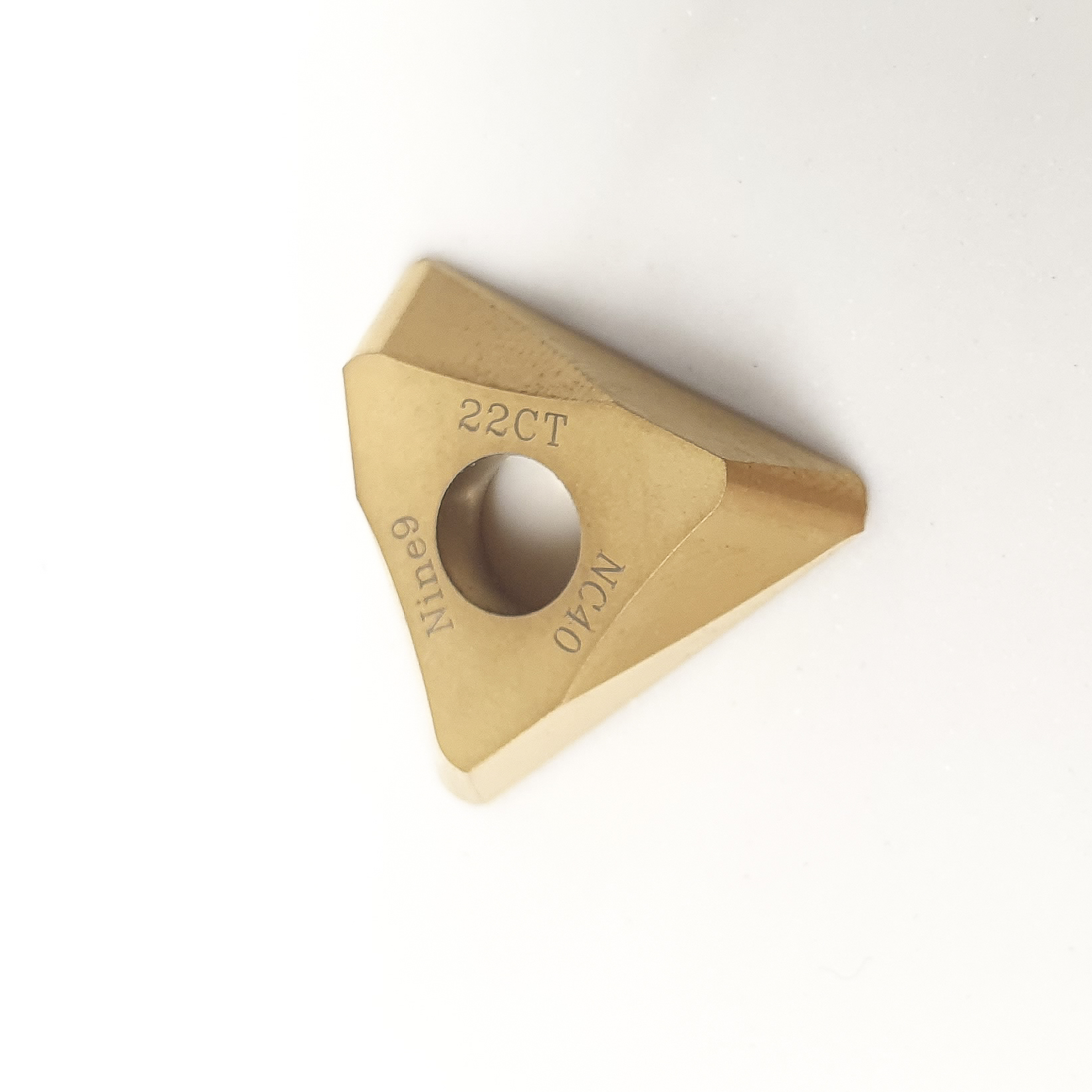

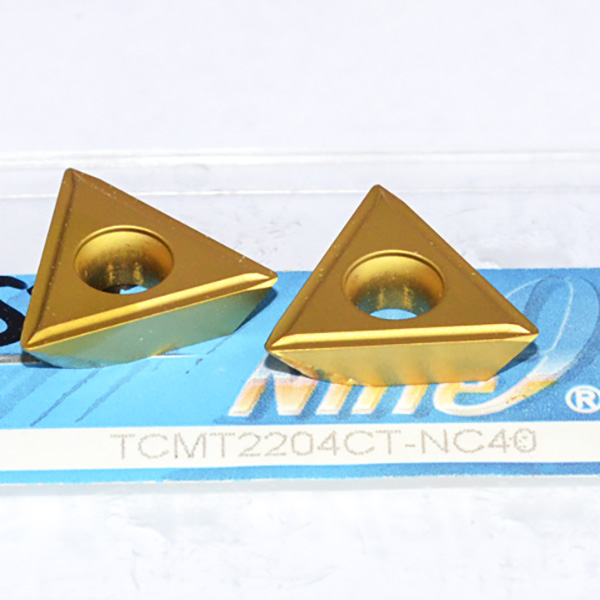

NINE9 INSERT N9MT2204CT-NC40 SPOTTING
Original price was: R1,235.00.R999.90Current price is: R999.90. Excl VAT
Only 5 left in stock

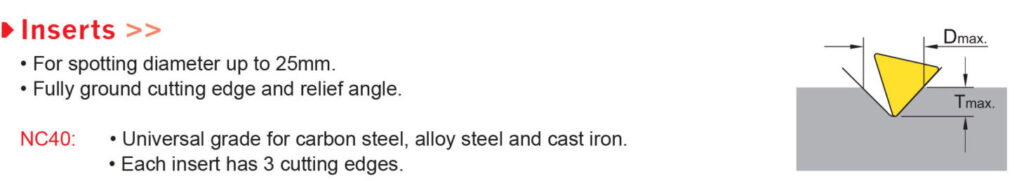

For spotting diameter up to 25mm.
• Fully ground cutting edge and relief angle
NC40:
• Universal grade for carbon steel, alloy steel and cast iron.
Description
N9MT220408 – NC Spot Drill
| Code | Parts No. | Coating | Grade | L (mm) | S (mm) | Re | Dmax. (mm) | Tmax. (mm) |
|---|---|---|---|---|---|---|---|---|
| 017301 | N9MT220408CT-NC40 | TiN | P35 | 20.83 | 4.76 | — | 25 | 12.2 |

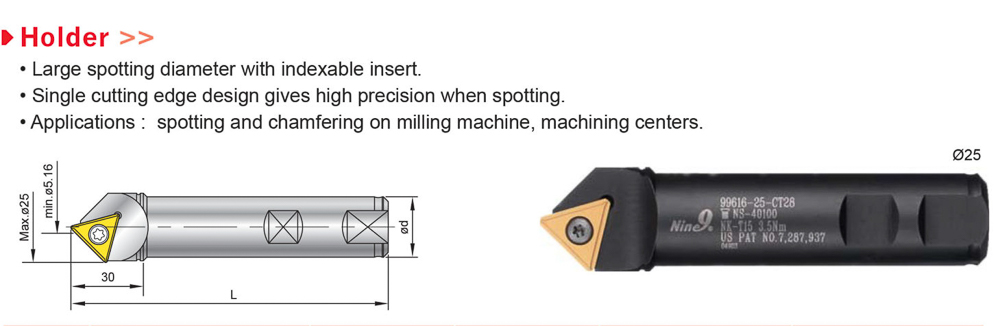

| Code | Parts No. | Ød | L (mm) | Screw | Key |
|---|---|---|---|---|---|
| 607001 | 00-99616-25-CT28 | 25 | 120 | NS-40100 3.5 Nm |
NK-T15 |
Additional information
| Weight | 0.100 kg |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
