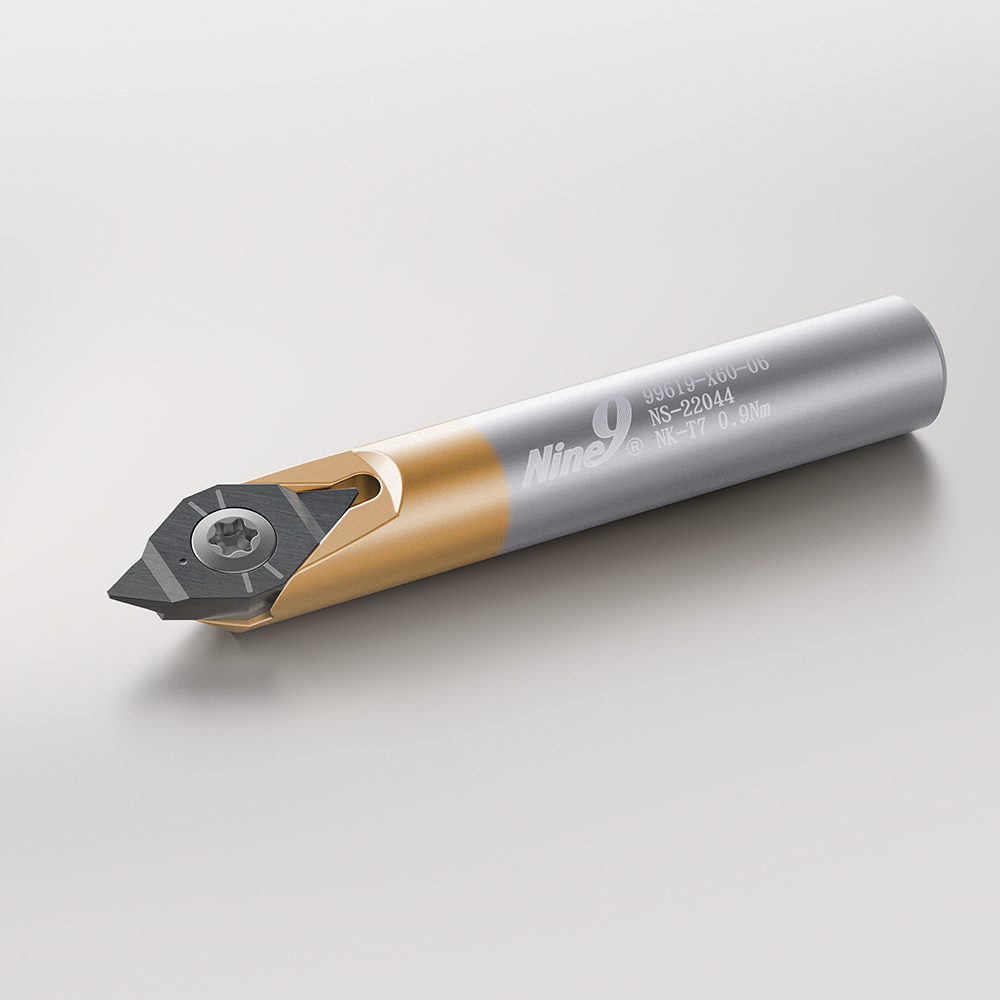

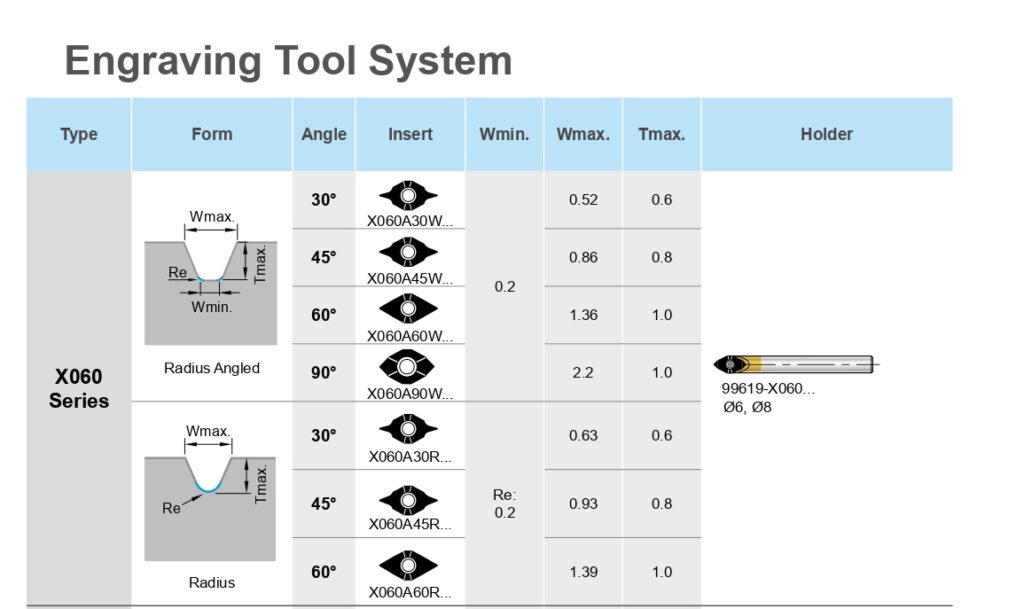

NINE9 X060 Multi-Angle Engraving Tool

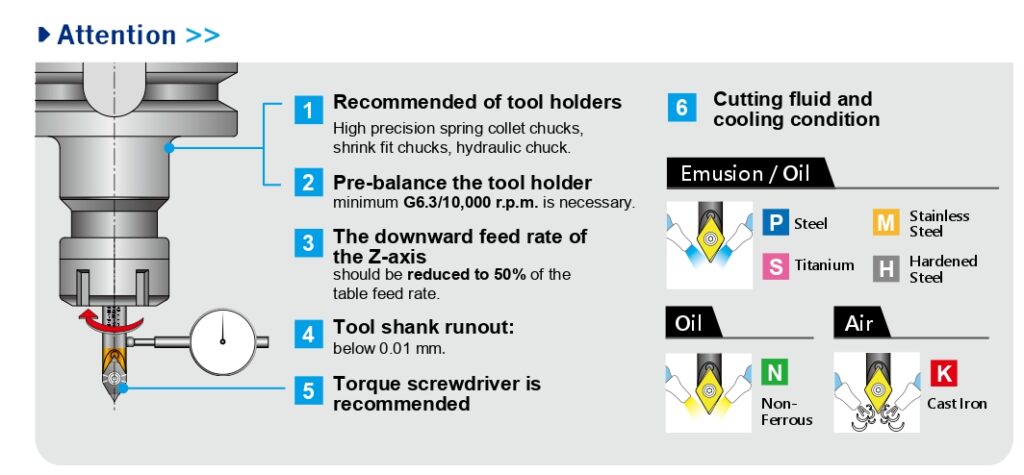

Description

Various inserts can fit on the same tool holder.
Also used for deburring tool and 30°, 45°, 60° X060 engraving tools.

Nine9 X060 micro spot drill

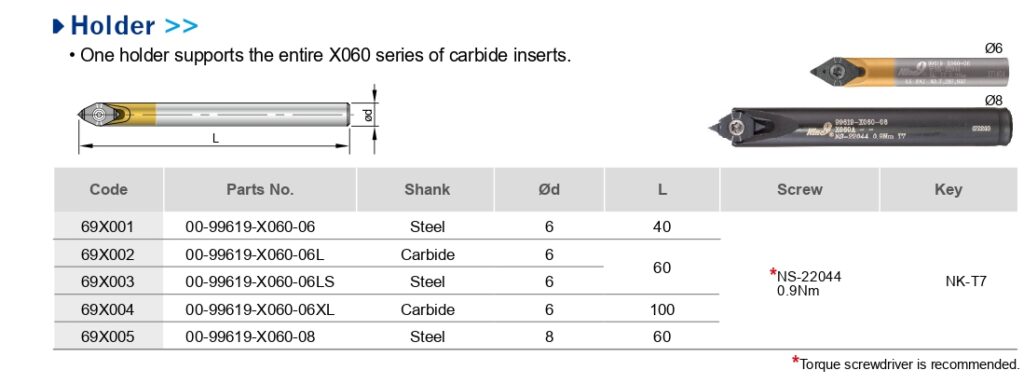

Part No	Insert Size	Shank	Ød	L
99619-X060-06	X060 series	Steel	6mm	40mm
99619-X060-06L	X060 series	Carbide	6mm	60mm
99619-X060-06LS	X060 series	Steel	6mm	60mm
99619-X060-06XL	X060 series	Carbide	6mm	100mm

Integrated ER16 taper-shank

• An integrated ER taper-shank cutter, eliminate assembly tolerance. Optimize the rigidity. Increase tool life. Better surface finish quality.
• The cutter has minimal assemble parts, changing tool takes just few seconds.
• Perfectly suitable for driven tools and spindles with ER interface of CNC turning centers and swiss type automatic lathes.

Part No	Insert Size	L
99816-X060	X060 series	22mm ( 0.866″)

Insert 90° / 120° / 142°

• NC2032:
For all kinds of steel from < 40 HRC, carbon steel, alloy steel,and cast iron.• NC2035:
ALDURA coating, reduces heat and tool wear.
For steel with heat treatment up to HRC 50.• XP9001:
Mirror polished, for non-ferrous metal, aluminum, brass, copper, plastic, acrylic.

Angle	Part No	Coating	Grade	Dmin.	Dmax.	Tmax.	Re	Workpiece material
90°	X060A90W010R	TiAlN	NC2032	0.1mm	1.1mm	0.5mm	0.02	PMK
90°	X060A90W010R	ALDURA	NC2035	0.1mm	1.1mm	0.5mm	0.02	PKH
90°	X060A90W010R	Uncoated	XP9001	0.1mm	1.1mm	0.5mm	0.02	N
90°	X060A90W020R	TiAlN	NC2032	0.2mm	2.2mm	1.0mm	0.04	PMK
90°	X060A90W020R	ALDURA	NC2035	0.2mm	2.2mm	1.0mm	0.04	PKH
90°	X060A90W020R	Uncoated	XP9001	0.2mm	2.2mm	1.0mm	0.04	N
120°	X060A120W010R	TiAIN	NC2032	0.1mm	2.53mm	0.7mm	0.02mm	PMK
142°	X060A142W010R	TiAlN	NC2032	0.1mm	2.42mm	0.4mm	0.02	PMK
