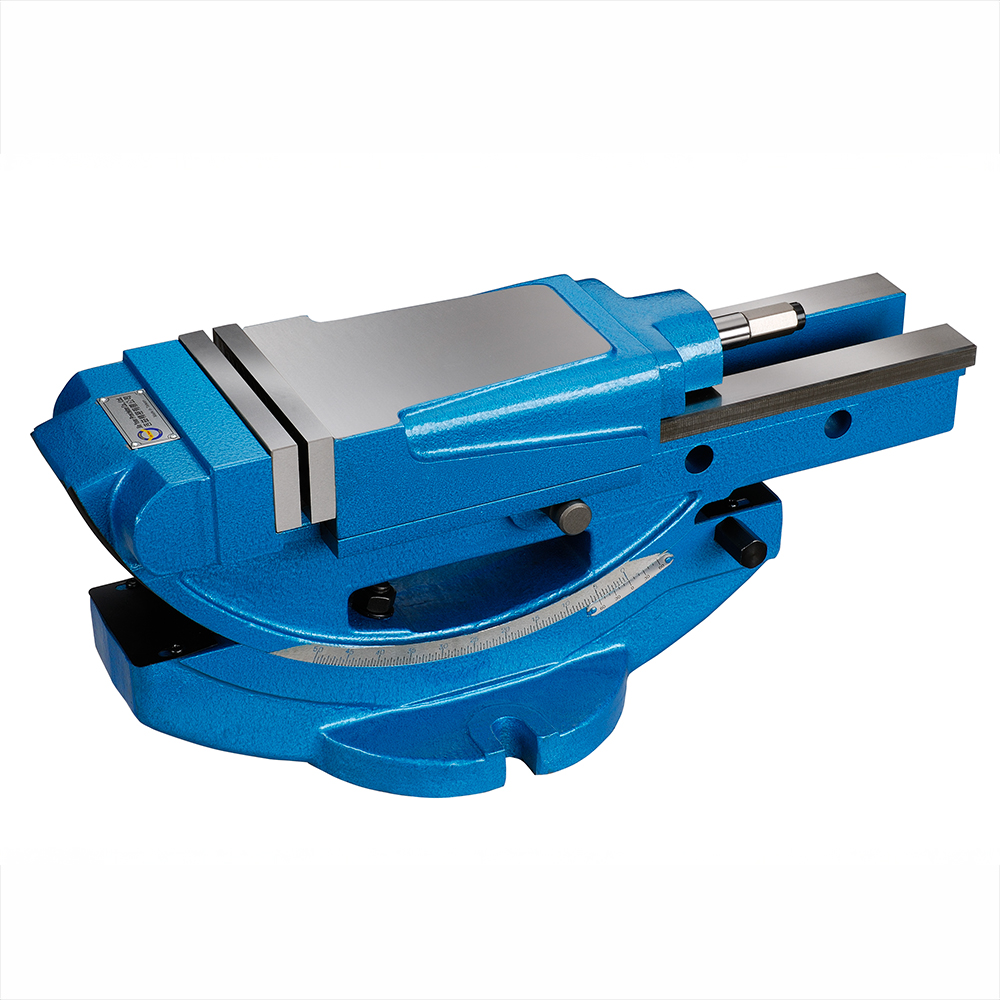

Tilting Hydraulic Machine Vice
Price range: R15,500.00 through R21,800.00 Excl VAT
Description
MODEL
THV-100
THV-150
PATENT
M314660

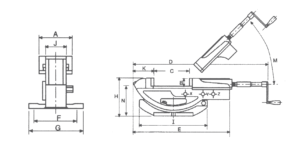

TECHNICAL DATA
| MODEL | A | B | C | D | E | F | G | H | I | J | K | M | N | Clamping Force (kgf) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THV-100 | 105 | 36 | 0–170 | 547 | 420 | 106 | 165 | 191 | 340 | 80 | 92 | 0°–45° | 160 | 2500 | Body: 26 kg Swivel Base: 7 kg |
| THV-150 | 150 | 53 | 0–300 | 790 | 600 | 165 | 230 | 250 | 435 | 116 | 123 | 0°–45° | 197 | 4500 | Body: 70 kg Swivel Base: 11 kg |
FEATURES
The vise is different from a standard hydraulic vise use for milling. The angle can be adjusted for processing, and its vertical angle can be adjusted freely from 0–45°. The graduation is very precise. The processing angle can clearly be set from the scale.
SWIVEL BASE
| ORDER NO. | A (mm) | B (mm) | C (mm) | D (mm) | G.W. (kg) |
|---|---|---|---|---|---|
| HS-4 | 270 | 240 | 40.7 | 15 | 7 |
| HS-5 | 292 | 267 | 44 | 17 | 8 |
| HS-6 | 330 | 300 | 40.8 | 17 | 11 |
| HS-8 | 380 | 345 | 42.2 | 19 | 13 |
Additional information
| Weight | 70 kg |
|---|---|
| Dimensions | 71 × 39 × 42 cm |
| Jaw Width | 100, 150 |
