HOMGE five axis self-centering zero point precision vice

Description

Features of the Five-Axis Self-Centering Vise

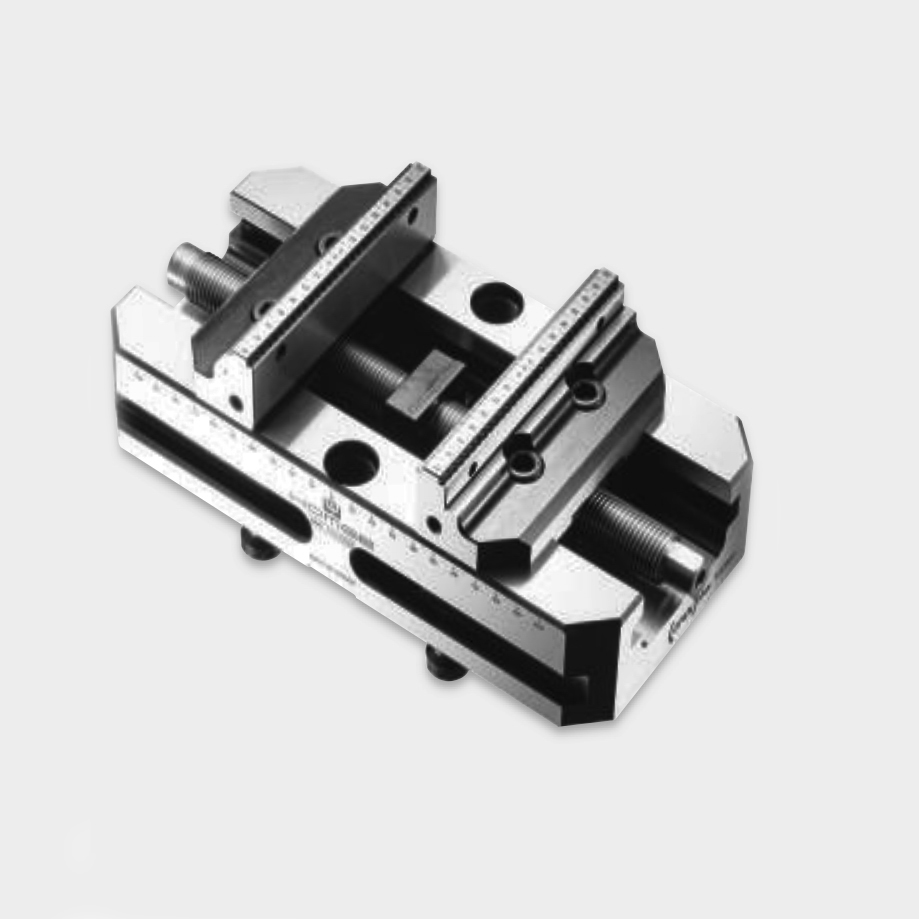

The ASC-127x260M Five-Axis Self-Centering Vise is designed for precision machining, making it an ideal choice for CNC machines. Crafted from high-quality steel (S50C), this vise offers durability and reliability.

Durable Construction

Made from premium steel, the vise body undergoes high-frequency hardening to achieve HRC50, ensuring long-lasting performance for precision machining applications. The ASC-127x260M Five-Axis Self-Centering Vise is built to withstand the rigors of continuous use in industrial environments.

Detachable Jaws

Constructed from top-grade tool steel (SCM440), the detachable jaws are carburized to achieve HRC55. Both sides are fixed size, providing a reliable datum and allowing users to reverse the jaws to increase the clamping range. This feature of the ASC-127x260M Five-Axis Self-Centering Vise ensures versatility and extended usability.

Performance

Clamping Force: Achieves an impressive 1300KG, making the ASC-127x260M Five-Axis Self-Centering Vise suitable for heavy-duty tasks.
Precision: The repeatability positioning precision of the clamping centre is within ±0.02mm, ensuring high accuracy for all machining operations.
Adjustable Clamping Centre: Calibrate the clamping centre using the screws on both ends to maintain precision.
Dovetail Structure: The 45° dovetail structure with teeth on the upper jaw ensures firm clamping of the workpiece, a crucial feature of the ASC-127x210S Five-Axis Self-Centering Vise.

Applications for CNC Machining Plates

This vise is perfect for precision machining on four-axis and five-axis CNC indexing tables, as well as vertical and horizontal CNC milling machines. The ASC-127x260M Five-Axis Self-Centering Vise is an essential tool for achieving high precision and efficiency in various machining tasks.

Accessories

Compatible with the M-96×96 Round Zero Point Plate. The ASC-127x260M Five-Axis Self-Centering Vise is also fully compatible with brands like Lang, HWR, and other brands using this pattern.

Technical Specifications

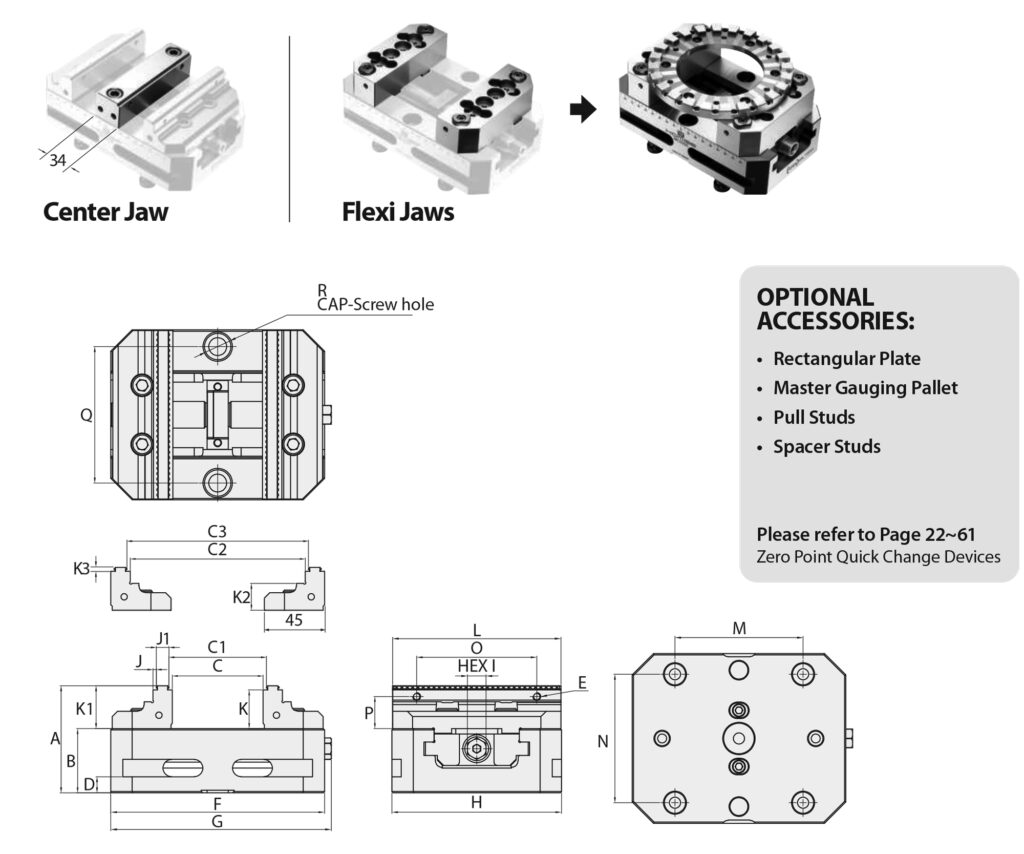

Model	A	B	C	C1	C2	C3	D	E	F	G	H	I	J	J1
ASC-127x130M	80	48	40	45	101	106	12	M6	130	135	127	14	25	9.5
ASC-127x160M	80	48	70	75	131	136	12	M6	160	165	127	14	2.5	9.5
ASC-127x210M	80	48	120	125	181	186	12	M6	210	215	127	14	2.5	9.5
ASC-127x260M	80	48	170	175	231	236	12	M6	260	265	127	14	2.5	9.5
ASC-150x260M	80	48	170	175	231	236	12	M6	260	265	127	14	2.5	9.5
Model	K	K1	K2	K3	L	M	N	O	P	Q	R	Pull Stud		Weight (kg)
ASC-127x130M	29	32	20	3	126	96	96	90	24	102	M12	M-96x96PS		7.3
ASC-127x160M	29	32	20	3	126	96	96	90	24	102	M12	M-96x96PS		7.5
ASC-127x210M	29	32	20	3	126	96	96	90	24	102	M12	M-96x96PS		8.5
ASC-127x260M	29	32	20	3	126	96	96	90	24	102	M12	M-96x96PS		10
ASC-150x260M	29	32	20	3	149	96	96	90	24	120	M12	M-96x96PS		13.5
