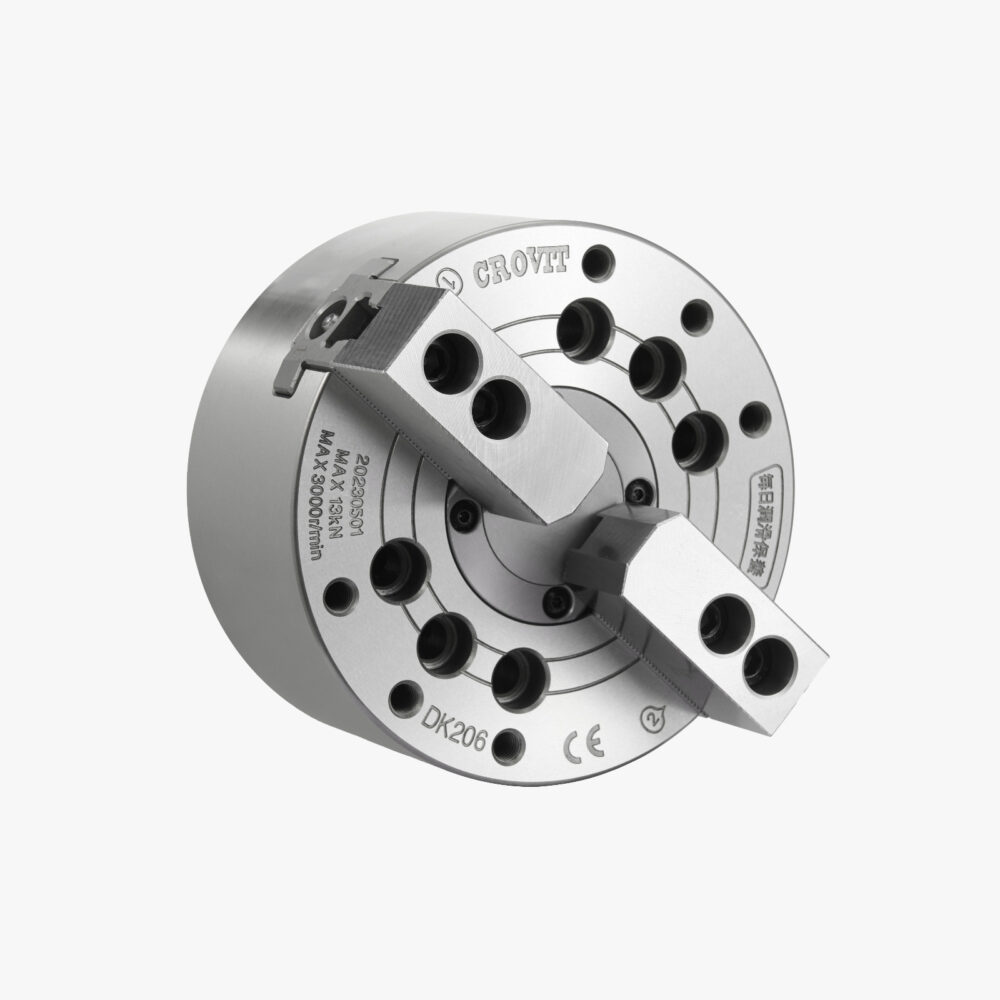

2 Jaw Hydraulic Power Chuck
Price range: R15,900.00 through R17,900.00 Excl VAT
Description
| Model | DK-205 | DK-206 | DK-208 | DK-210 | DK-212 | DK-215 |
|---|---|---|---|---|---|---|
| Thru Hole Dia. [mm] | 33 | 45 | 52 | 75 | 91 | 117.5 |
| Plunger Stroke [mm] | 10 | 12 | 16 | 19 | 23 | 23 |
| Jaw Stroke Dia. [mm] | 5.4 | 5.5 | 7.4 | 8.8 | 10.6 | 10.6 |
|
Max RPM [r.p.m.]
|
7000 | 6000 | 5000 | 4200 | 3300 | 2500 |
| Max Draw Bar Pull Force [kgf(kN)] |
1120 (11) | 1420 (14) | 2240 (22) | 2850 (28) | 3670 (36) | 4790 (47) |
| Max Gripping Force [kgf(kN)] |
2340 (23) | 3770 (37) | 5710 (56) | 7440 (73) | 9690 (95) | 12130 (119) |
| Max. Hydraulic Pressure [kgf/cm2(MPa )] |
19 (1.9) | 18.5 (1.8) | 17 (1.7) | 18 (1.8) | 18 (1.8) | 17 (1.7) |
| Weight [kg] | 6.5 | 13.1 | 23 | 35.9 | 56.6 | 103.2 |
| Gripping Range[mm] | Φ10～Φ135 | Φ13～Φ169 | Φ13～Φ210 | Φ30～Φ254 | Φ35～Φ304 | Φ35～Φ381 |
Drawings:
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 6", 8", 10", 12", 15", 18" |
| Jaws | 2 |
